Basic Information
Model NO.:LH-103B/LH-100B/LH-200B
Application:Industry, School, Lab
Certification:CE
Structure:Desktop
Material:Stainless Steel
Type:Incubator
Control Method:P.I.D
Display:LCD Dual Display
Oscillation Mode:Rotary Oscillation
Rotation Frequency:30-400rpm
Temperature Range:RT +5-60c / 4-60c
Net Weight:100kg
🔬
Product Description

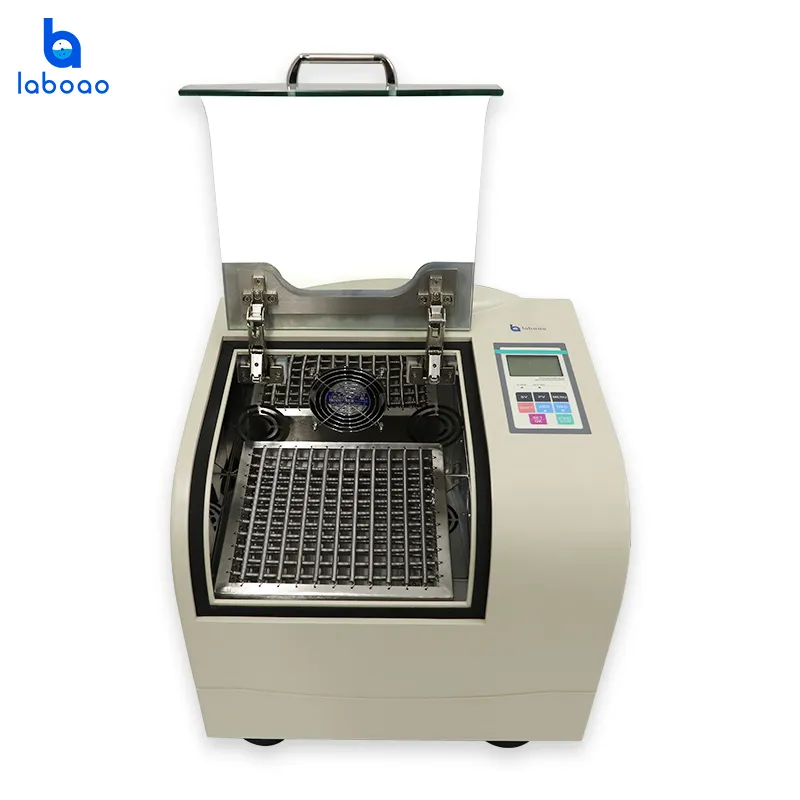

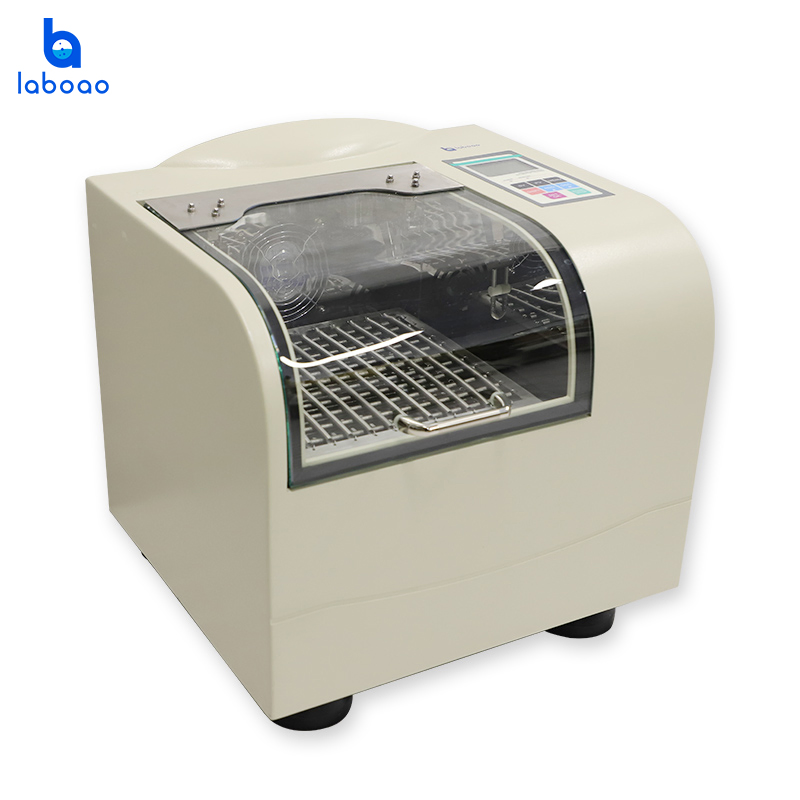

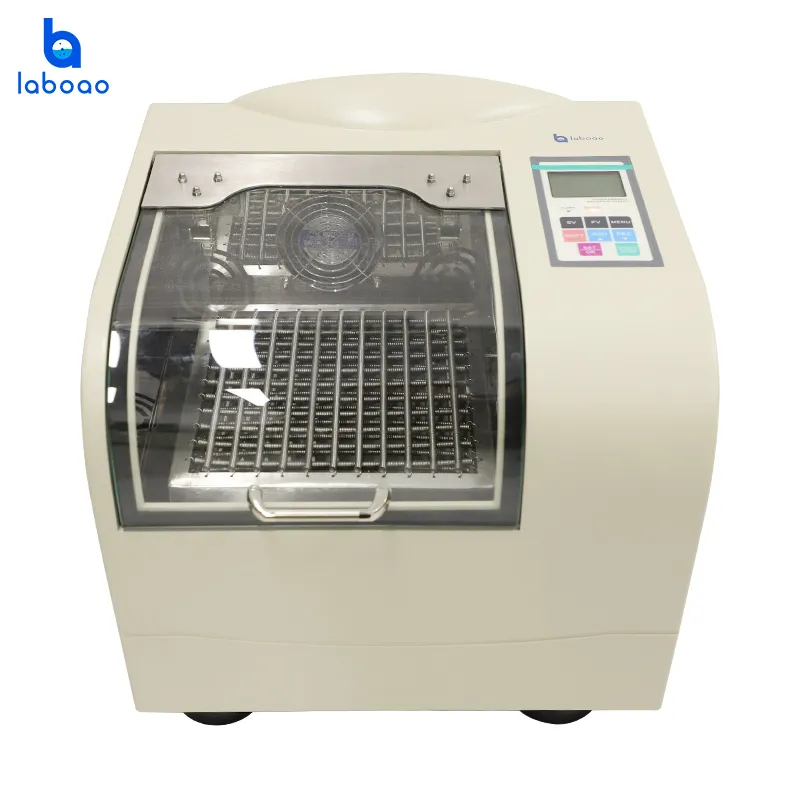

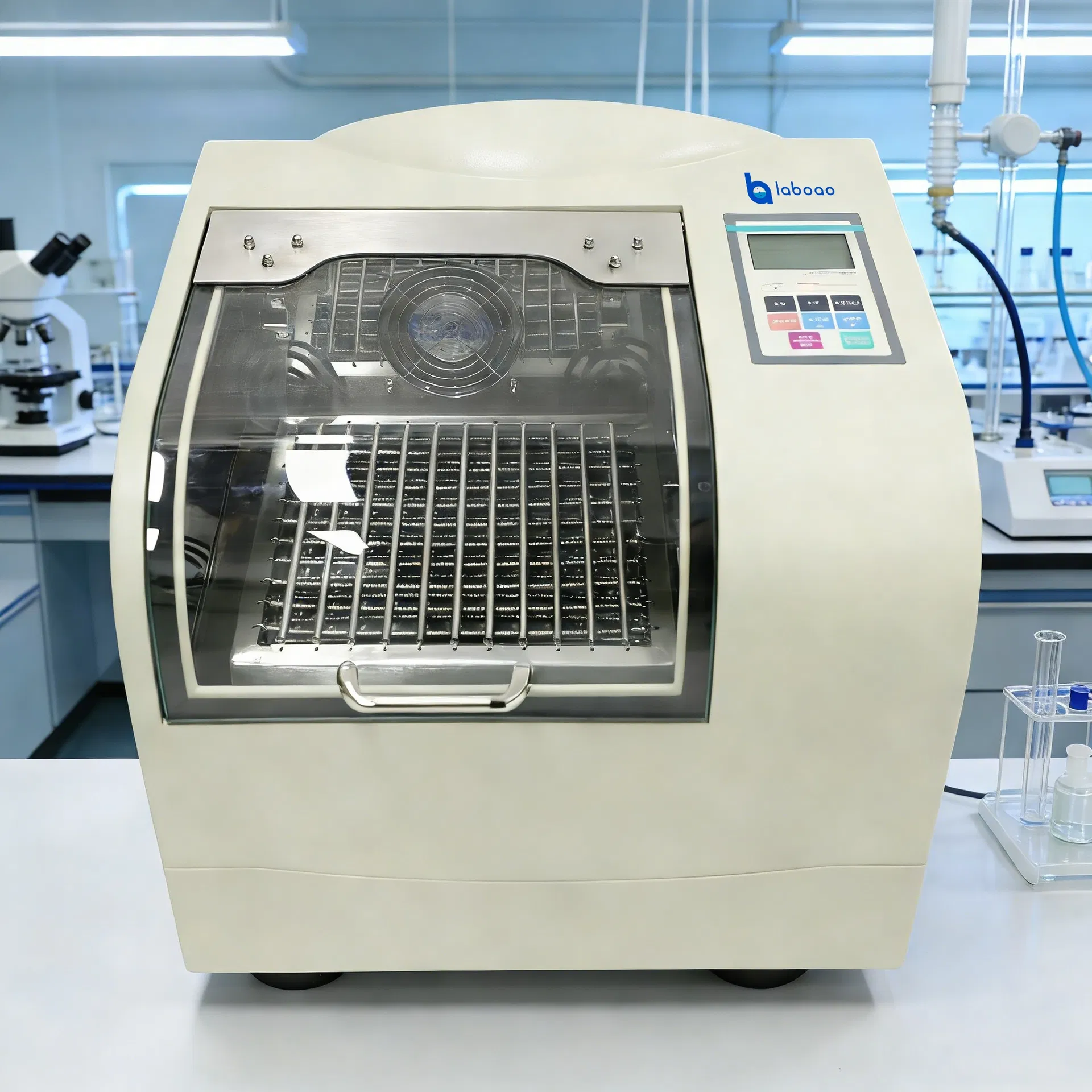

The constant temperature shaker features a stainless-steel universal clamp, digital display temperature control, stepless speed regulation, and an efficient thermal cycle function. This multi-purpose biochemical device is essential for research and production in plants, biology, microbiology, genetics, environmental protection, and medicine.
✅
Key Features
◈
Original single-axis balance drive technology ensures extremely low energy consumption and noise.
◈
Wide oscillation frequency range from 30 to 400/600 rpm.
◈
Intelligent microprocessor controller with sound and light environment scanning alarms.
◈

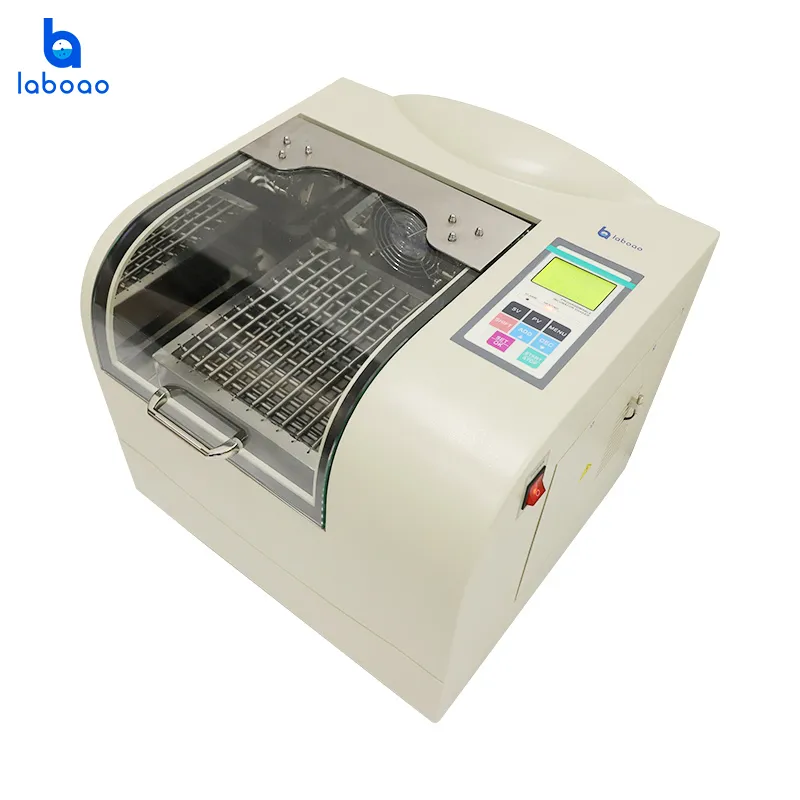

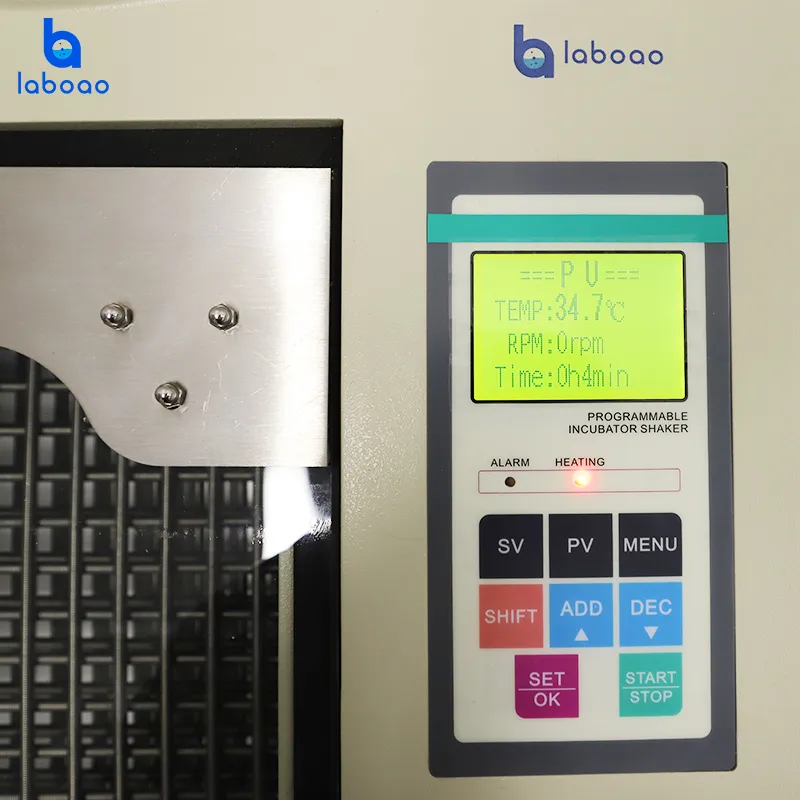

Large backlit LCD display for simultaneous viewing of set and measured parameters.
◈
Fluorine-free refrigeration system meeting international environmental standards.
◈
Power-off recovery function automatically resumes operation after power restoration.
◈
Maintenance-free AC induction motor with constant torque and speed regulation.
📋
Technical Specifications
| Parameter |
LH-103B |
LH-100B |
LH-200B |
| Control Method |
P.I.D Microcomputer Processing |
| Display Method |
LCD Dual Display |
| Temperature Range |
Room Temp +5℃ to 60℃ |
4℃ to 60℃ |
| Temperature Accuracy |
±0.1℃ |
| Frequency Range |
30-400rpm |
| Amplitude |
φ25mm |
| Rocker Size (mm) |
260*260 |
400*370 |
420*400 |
| Dimensions (mm) |
440*419*420 |
610*610*510 |
700*740*560 |
❓
Frequently Asked Questions
1. What is the rotation speed range of this incubator shaker?
The rotation frequency can be adjusted within a wide range of 30 to 400 rpm with an accuracy of ±1rpm.
2. Does the device include safety alarms?
Yes, it features an intelligent sound and light alarm for over-temperature, motor overheating, and speed deviations.
3. What happens if there is a sudden power failure?
The unit includes a power-off recovery function, allowing it to automatically resume operation according to the original settings once power is restored.
4. Is the refrigeration system environmentally friendly?
Yes, the device utilizes a safe, fluorine-free refrigeration system that meets international environmental requirements.
5. What materials are used for the interior?
The inner cavity is constructed from high-quality imported stainless steel mirror panels for durability and easy cleaning.
6. Can the temperature control be programmed?
Yes, it supports eight-segment curve programming settings, including repeat and step functions.
