Original Imported High Speed Thermal Printer Rebound Hardness Testing Instrument

1 / 5

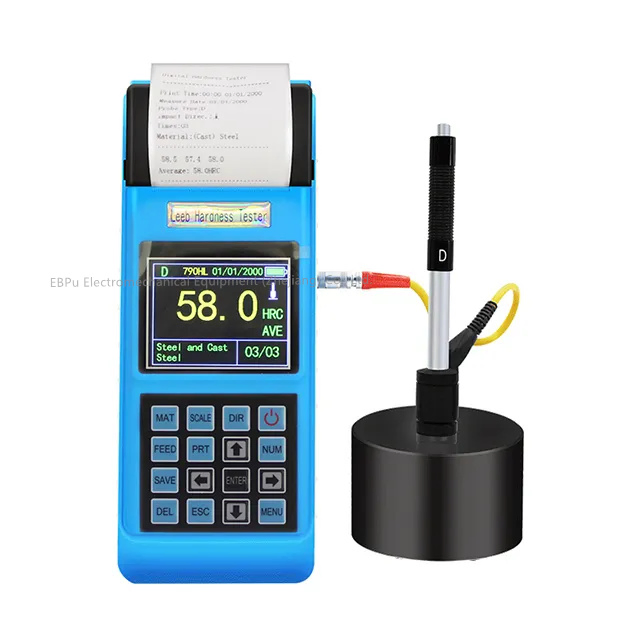

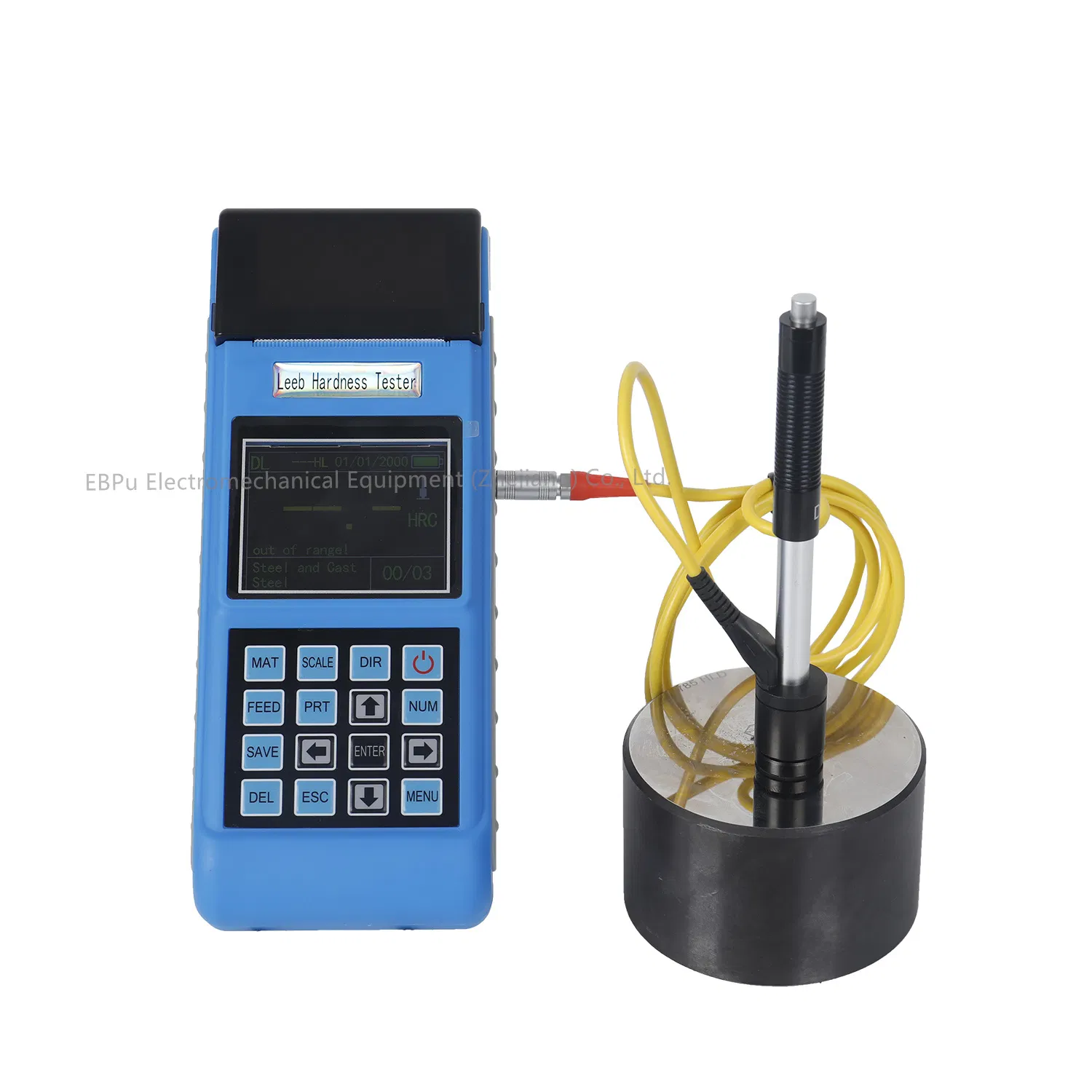

Original Imported High Speed Thermal Printer Rebound Hardness Testing Instrument

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Information

Model NO.

L-5

Application

Metal Hardness Testing

Standard

ISO, ASTM, GB/T

Warranty

1 Year

Mobility

Portable

Rated Voltage

Display

240*320 TFT Color Screen

Hardness Scales

HL, HB, HRB, HRC, HRA, HV, HS

Test Direction

360 Degree

Interface

USB 2.0

Product Features

Large 240*320 TFT color display showing all functions and parameters.

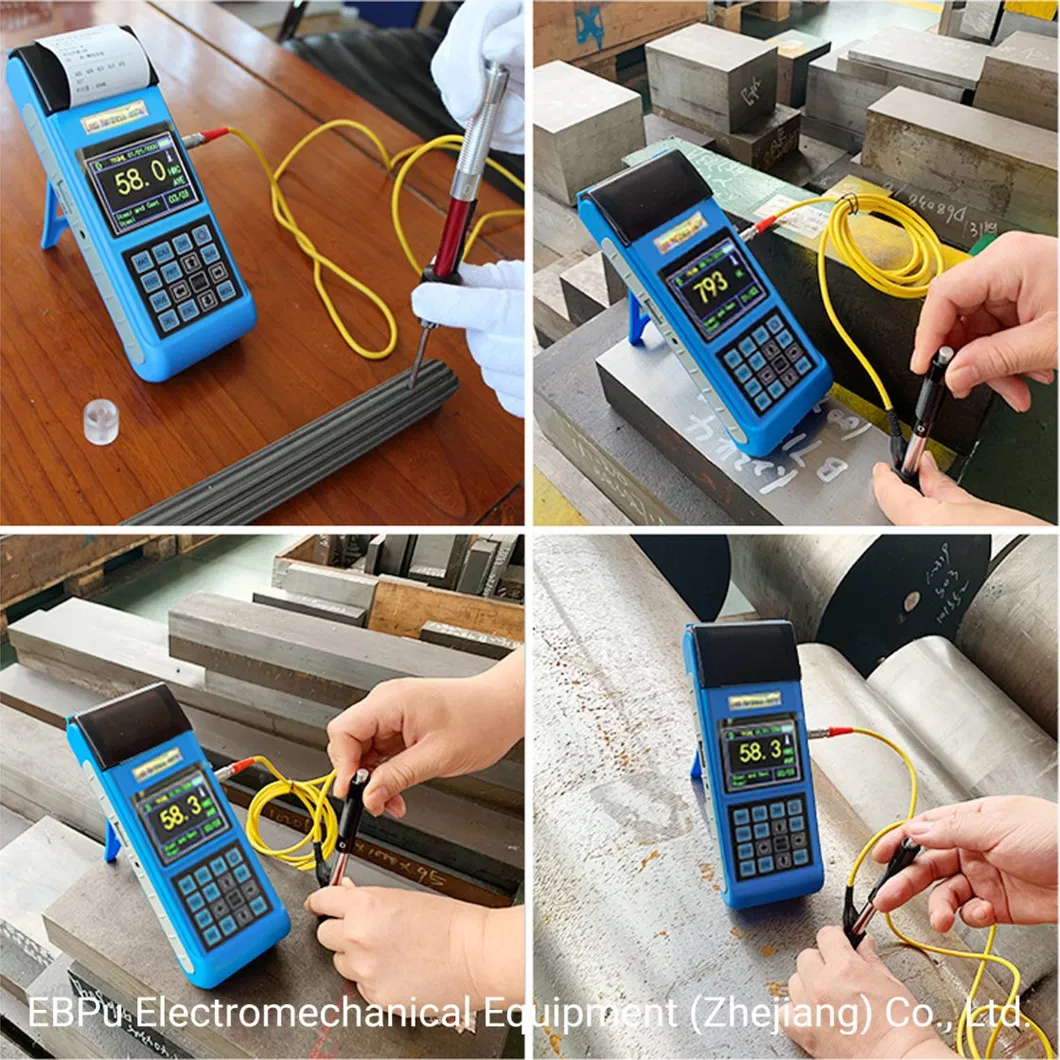

Test at any angle, including upside down testing.
Supports forged steel materials with direct HB value reading.
Wide measuring range for all metallic materials.
Automatic identification of seven available impact devices.
Large memory capacity for 600 groups of test data.
Preset upper and lower limits with automatic alarm system.
User-friendly calibration function and battery status indication.
Equipped with high-speed thermal printer for immediate data recording.

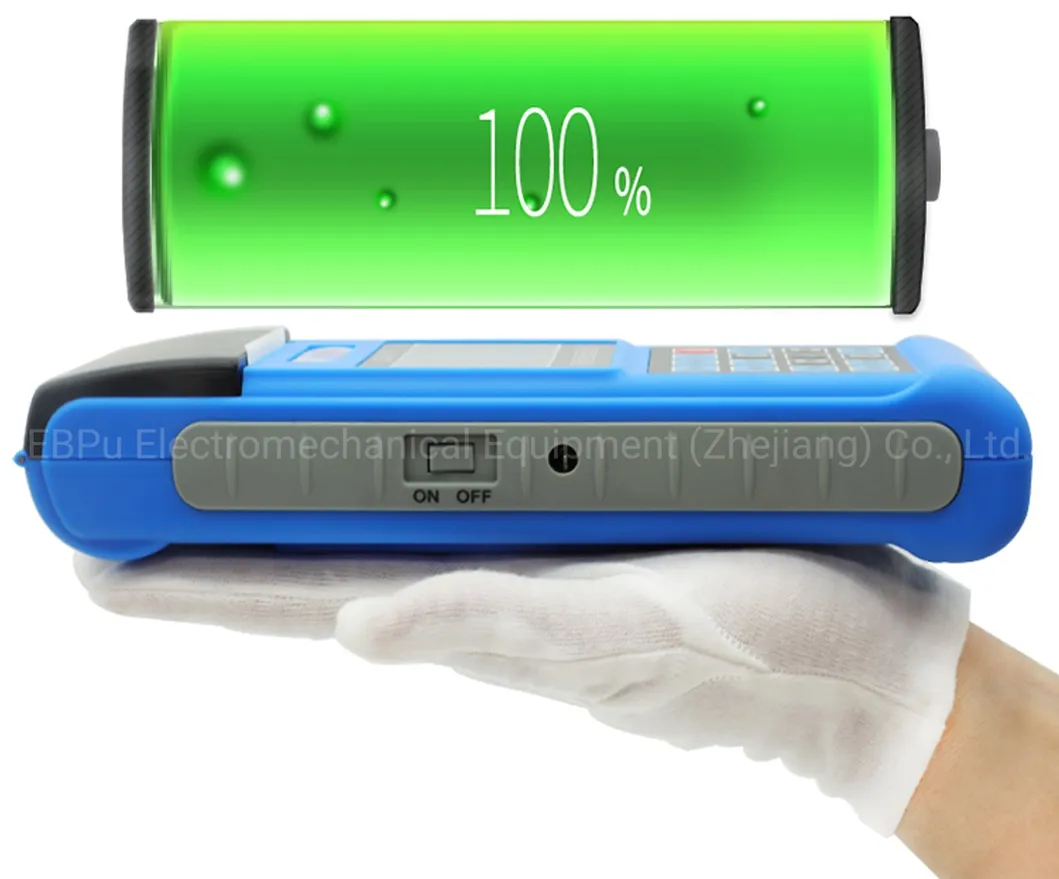

Internal Li-rechargeable battery supporting up to 150 hours of continuous operation.
Industrialized sturdy housing design suitable for harsh environments.

Main Applications

Die cavity of molds
Bearings and other high-precision parts
Failure analysis of pressure vessels and steam generators
Heavy workpieces and permanently assembled machinery
Small hollow space surface testing
Warehouse material identification and rapid large-scale testing

Technical Specification

Parameter	Specification Details
Measuring Range	HLD(170-960), HRC(17.9-69.5), HB(19-683), HV(80-1042), HS(30.6-102.6)
Impact Directions	Up, down, horizontal, slanting up/down
Measuring Materials	Steel, cast steel, stainless steel, gray cast iron, brass, bronze, copper
Compliance Standards	ASTM A956, DIN50156-1, GB/T17394-1998
Tensile Strength	374 to 2652 N/m²
Memory Storage	600 groups maximum

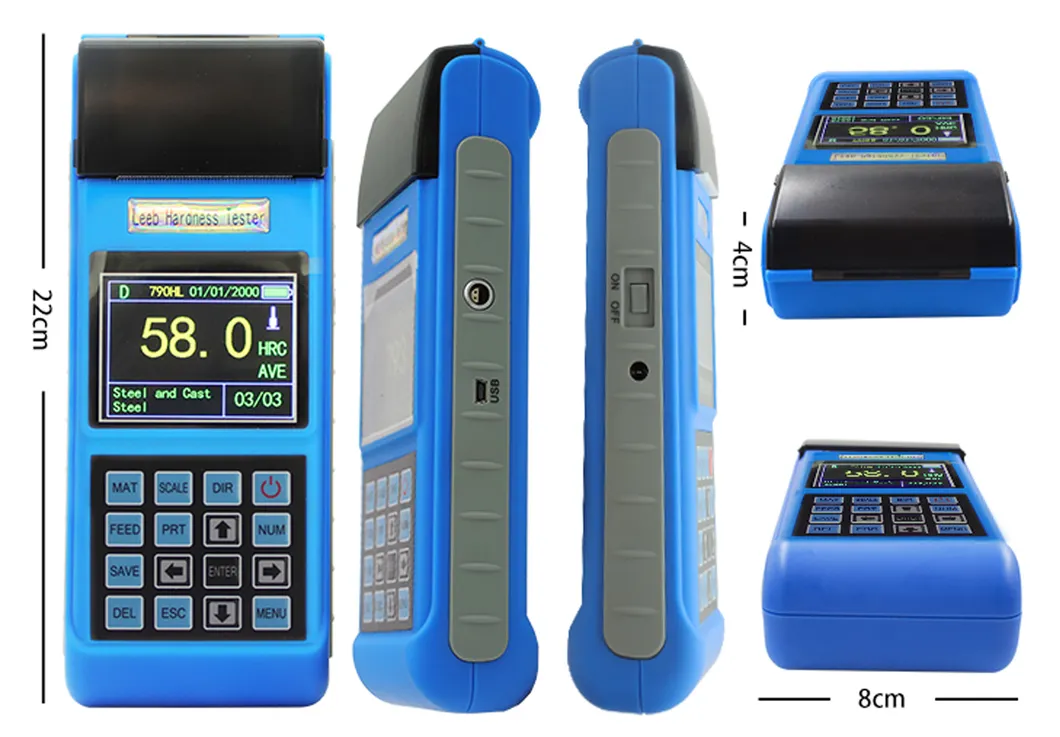

Dimensions	210 * 85 * 45mm (host)
Weight	0.6kg (host)

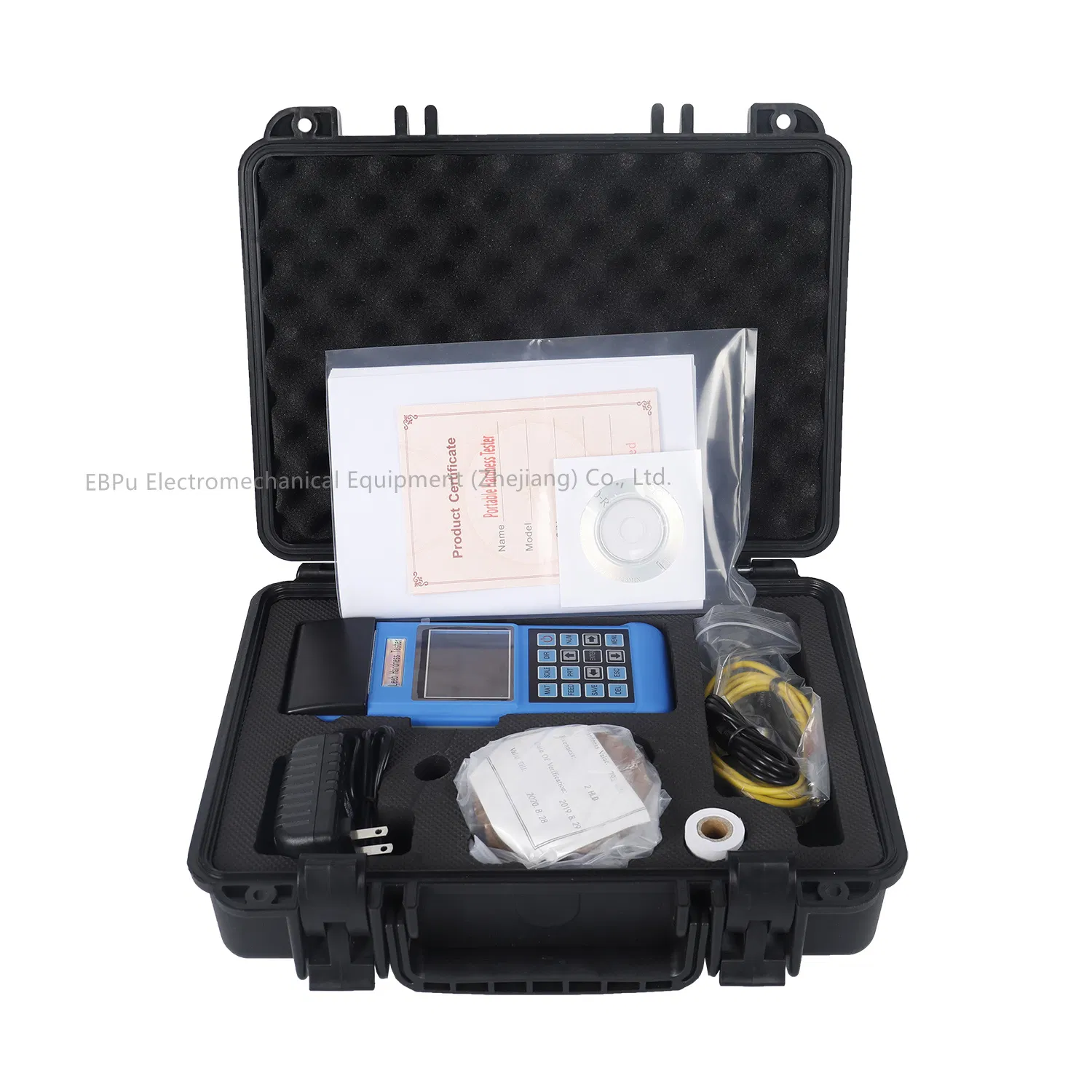

Packing List

Item	Quantity	Remarks
Main Unit	1 PC	Integrated Printer

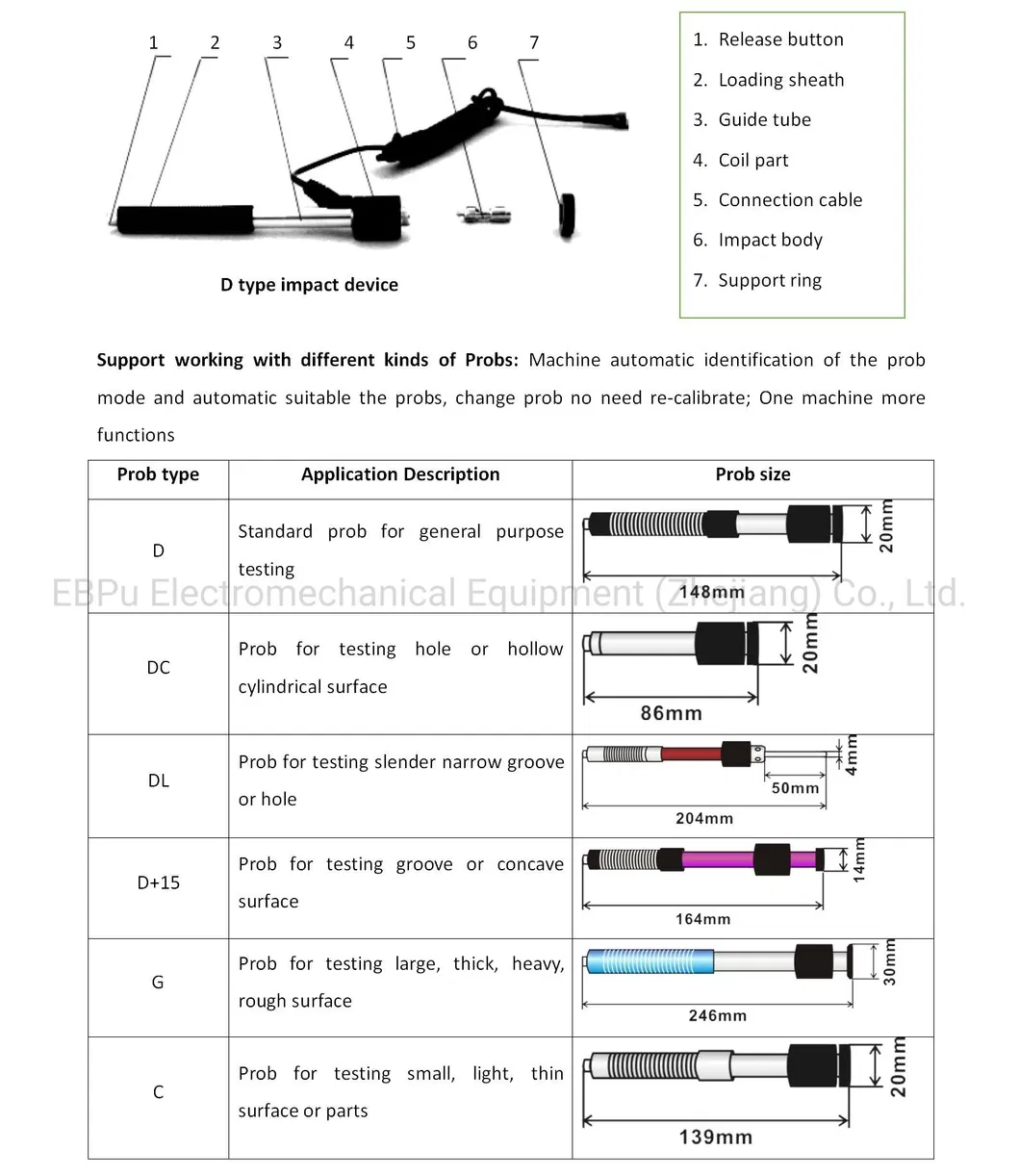

D type impact device	1 PC	With cable
Standard test block	1 PC	For calibration
Cleaning brush	1 PC	-

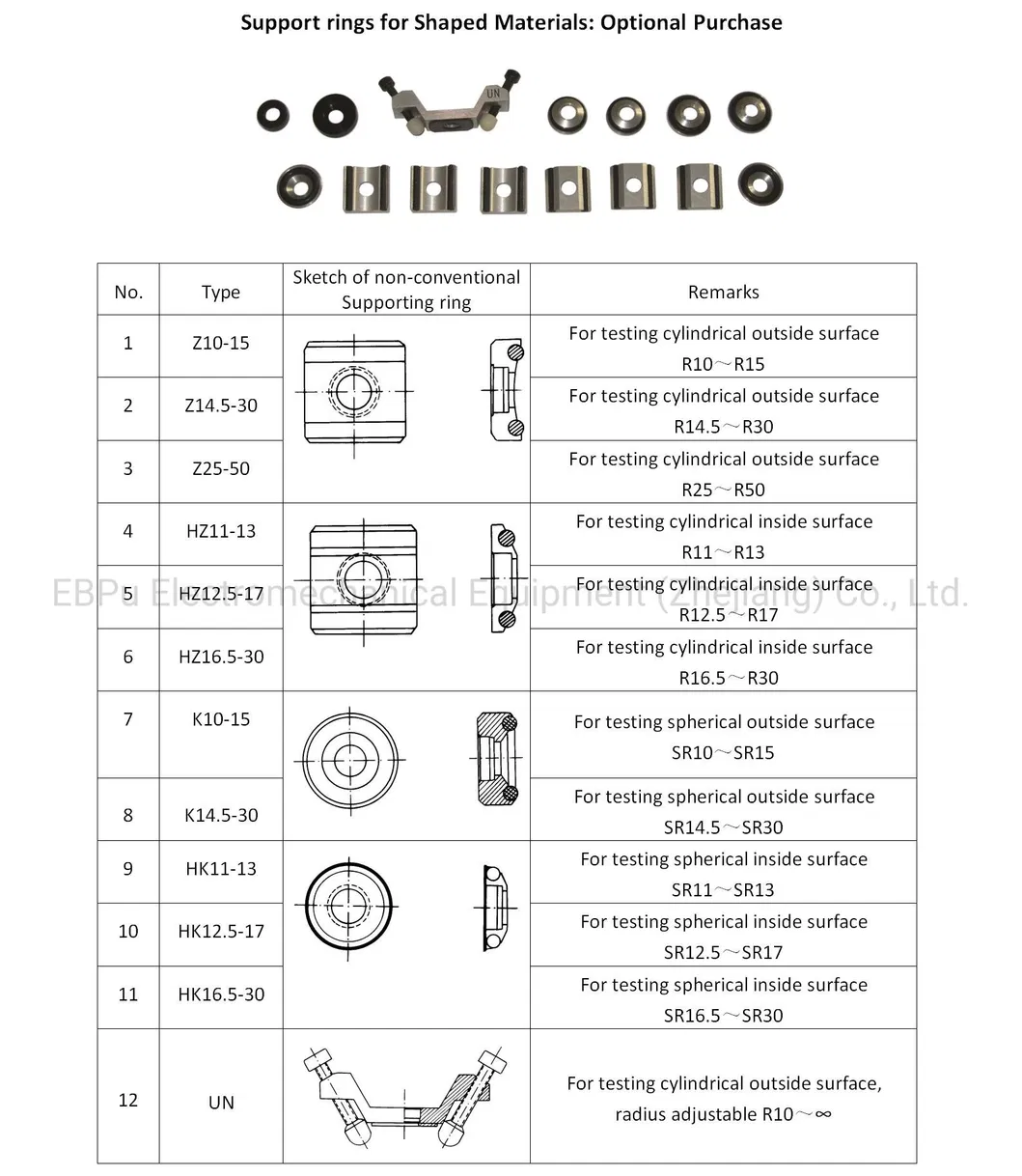

Small support ring	1 PC	-
Battery Charger	1 PC	9V 500mA
Data Software & Cable	1 PC Each	USB communication

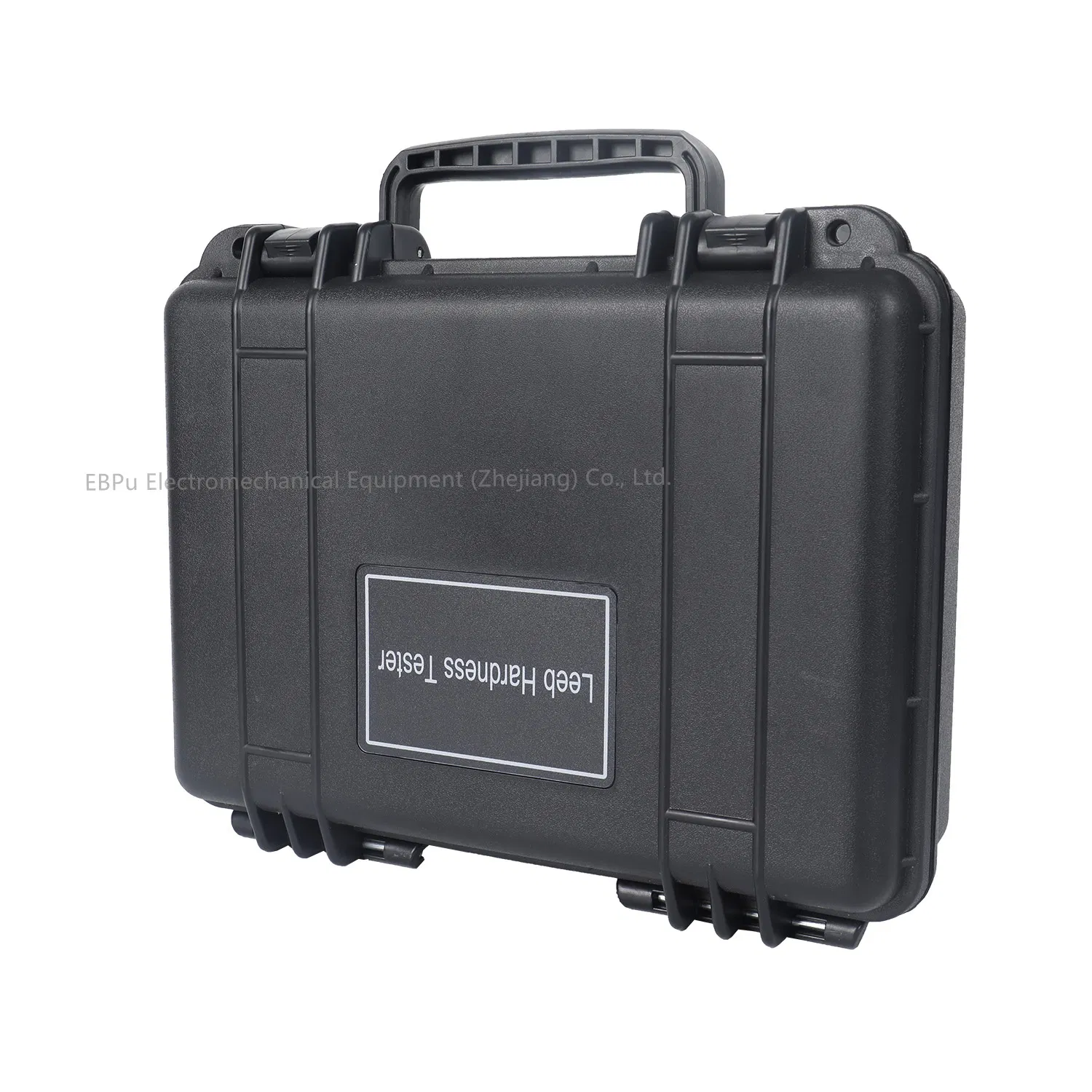

Instrument Case	1 PC	Portable carry box

Company Capability & Expertise

Providing innovative and robust laboratory solutions, our team brings over 10 years of experience in materials preparation and analysis. We are dedicated to delivering reliable service and expert knowledge in hardness testing and material characterization.

Product Certifications

Customer Cases & Global Presence

Frequently Asked Questions

What metallic materials can this hardness tester measure?

The device can measure a wide range of materials including steel, cast steel, alloy tool steel, stainless steel, gray cast iron, nodular cast iron, cast aluminum alloy, brass, bronze, and copper.

Can it perform tests at different angles?

Yes, the instrument is designed to test at any angle, even upside down, without affecting the accuracy of the results.

What is the battery life of the instrument?

It is equipped with a 3000mA Li-rechargeable battery that supports a continuous working period of no less than 150 hours when the backlight and printing functions are off.

How many groups of data can be stored in the memory?

The large capacity memory can store up to 600 groups of information, including measured values, mean values, testing data, impact direction, and material scales.

Does the device support data transfer to a PC?

Yes, it features a USB 2.0 port and comes with multifunctional data proceeding software for easy communication and data management on a computer.

Is the printer integrated into the device?

Yes, the unit features an original high-speed thermal printer integrated for immediate printing of test results.
