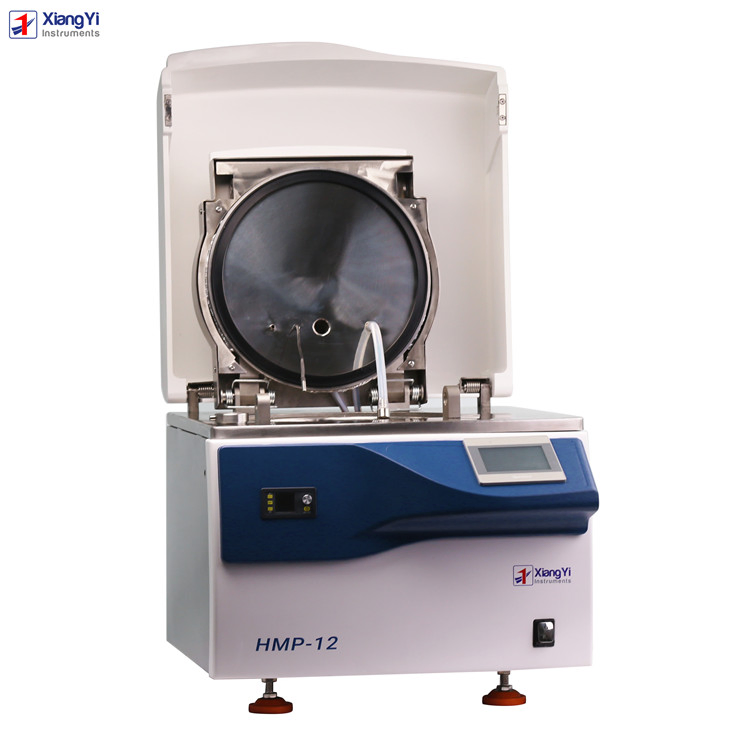

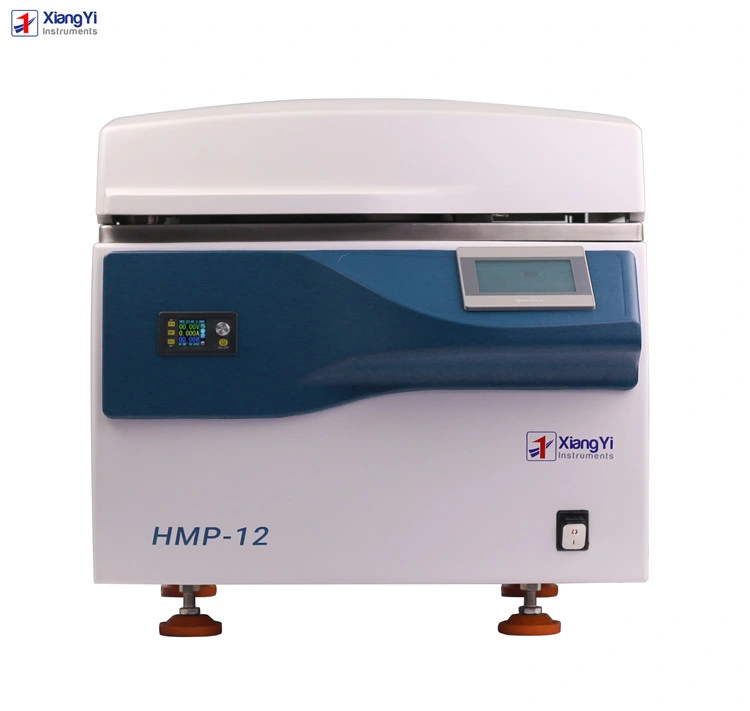

Auto Culture Media Preparator Medium Petri Dish Preparator

Customization:	Available
After-sales Service:	One Year Free Parts
Warranty:	One Year

Send Inquiry

Product Description

Basic Specifications

Model NO.

MEDIAPREP Series(HMP)

Structure

Desktop

Certification

CE, ISO

Application

School, Hospital, Lab

Type

Medium Preparator

Capacity

12L / 30L Options

Sterilization Temp

70-122 ° C

Package

Carton or Plywood

Product Overview

💡

High-quality media is the core of biological culture. The HMP preparator Automated Media Reader is a flexible solution designed to quickly sterilize and prepare high-quality media. It minimizes storage space for petri dishes and ensures uniformity through precise monitoring of time, temperature, and pressure.

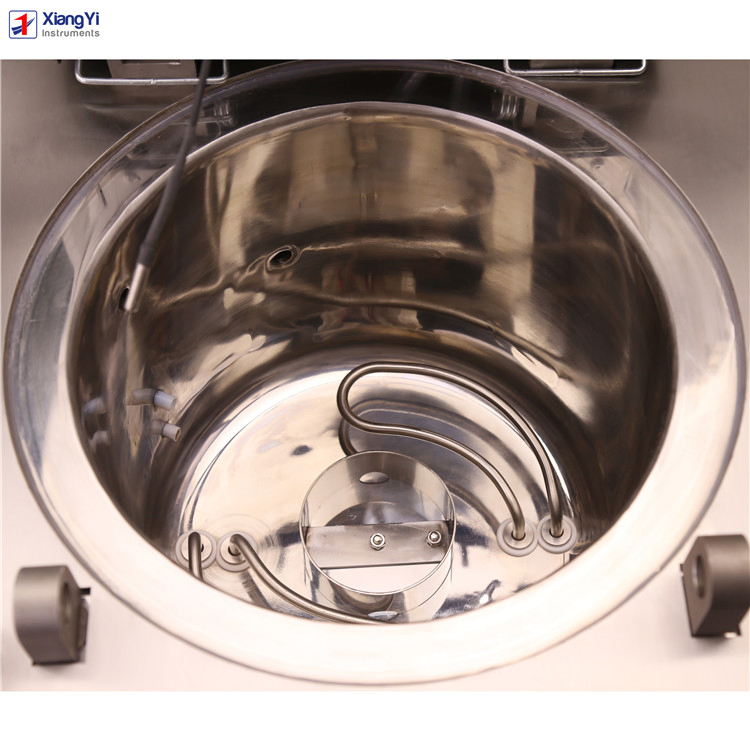

HMP preparator utilizes a "water jacket system" for efficient heat transfer. Raw materials can be suspended and dissolved directly in the chamber with strong magnetic stirring to prevent condensation. The intuitive graphical interface allows customization of sterilization procedures without specialized training.

Operating Modes

Standard Mode: For standard or high sensitivity medium preparation.
Chocolate Agar Mode: A 2-step procedure for complex media requiring nutrient additions (like blood) after the first sterilization.
Water Bath Mode: Dissolves medium at 30 - 80 °C or heats liquids in glassware.
Sterilization Mode: Functions as a common table sterilizer for test tubes and flasks.

Core Features

Highly Safe Operation: Features 4 independent temperature/pressure detectors and an automatic air-tightness check. Includes independent over-voltage safety protection.

Rapid Heating & Cooling: Efficient heating elements reduce thermal stress. The rapid cooling system uses a plate heat exchanger with an internally isolated cooling water system to prevent contamination.

Reliable Sterilization: Powerful magnetic stirrer with adjustable speed (up to 240rpm) and Pt-1000 temperature probes ensure consistent results.

Simple Dispensing: Large addition port for antibiotics or blood. The dispensing port is automatically sterilized to eliminate contamination risks.

Cleaning & Maintenance: Built-in cleaning programs automatically sterilize chambers, pipes, and valves after use.

Technical Parameters

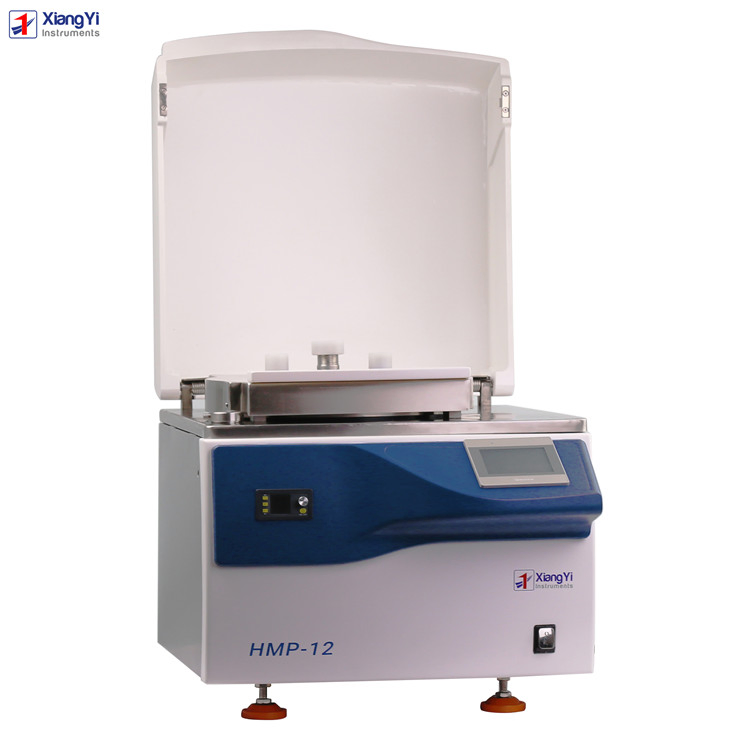

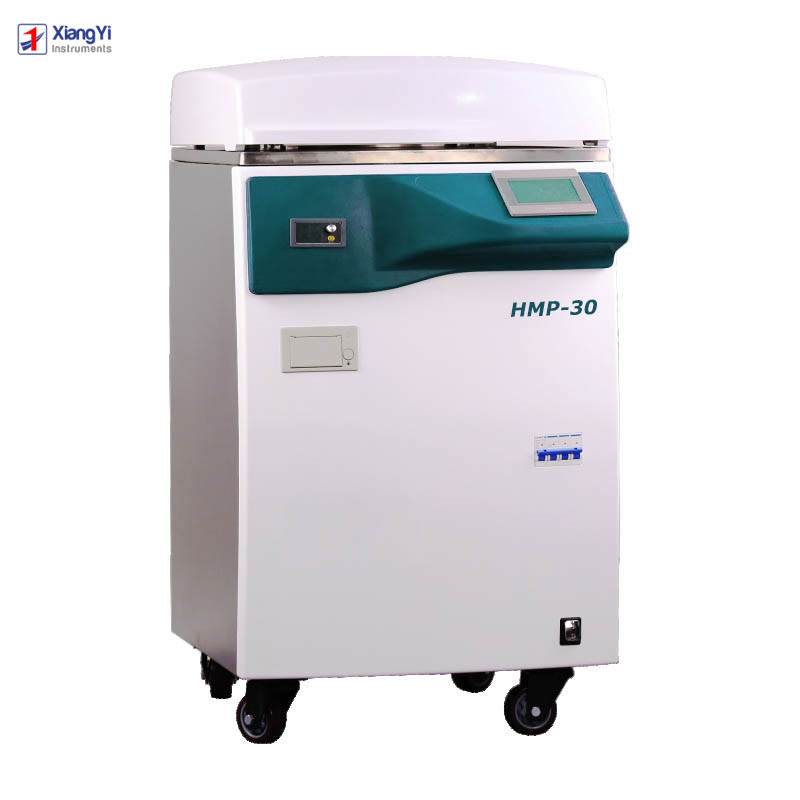

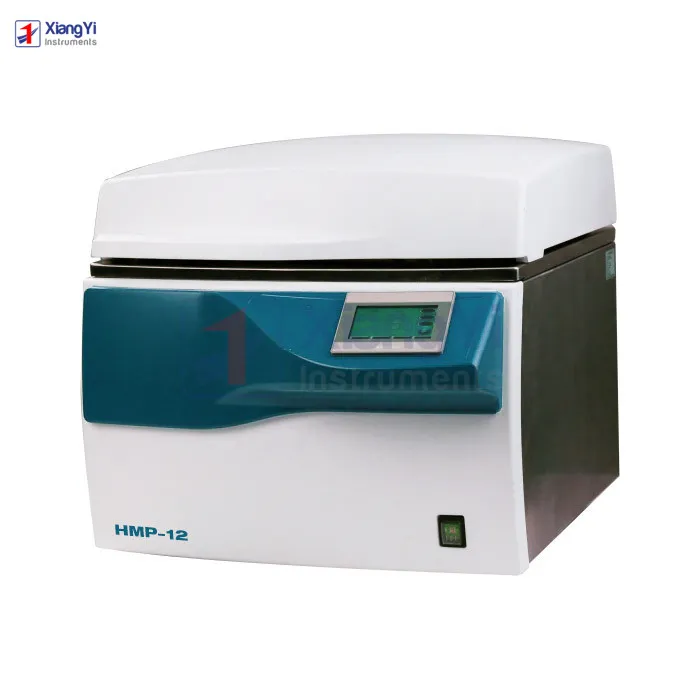

Model	MEDIAPREP-12(HMP-12)	MEDIAPREP-30(HMP-30)
Capacity	12L, cavity 17L	30L, cavity 43.7L
Cavity size	296mmx250mm	296mmX650mm
Bucket size	260mmx222mm	222mmX 622mm
Sterilization temperature	70-122 ° C	70-122 ° C
Water bath temperature	30-80 ° C	30-80 ° C
Max working pressure	2.5bar	2.5bar
Temp accuracy/offset	0.1 ° C / 1 ° C	0.1 ° C / 1 ° C
Stirring Speed	Adjustable 120rpm - 240rpm
Heating power	3.6KW	10KW
Dimensions (mm)	480555635 (HLD)	965555655 (HLD)
Net weight	50kg	70kg

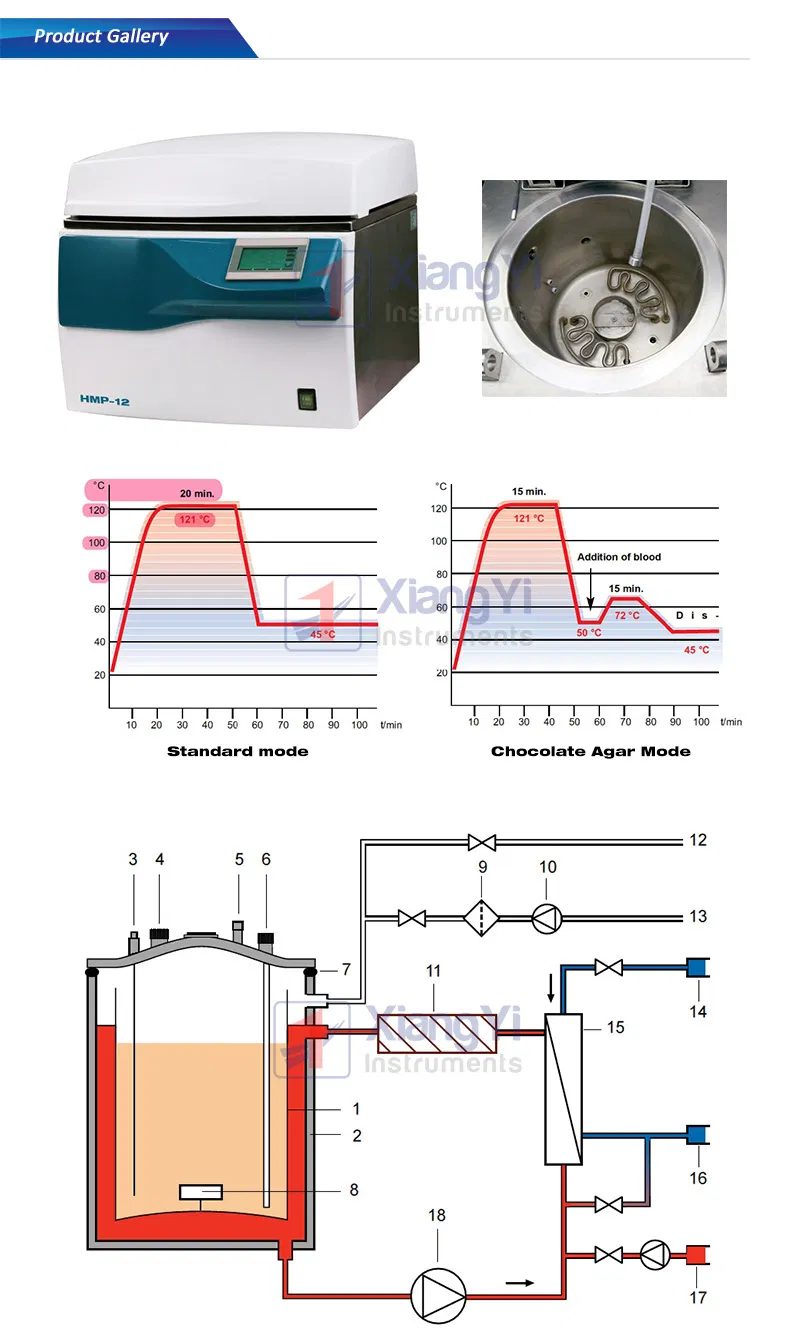

Product Gallery

Frequently Asked Questions

Q1: What are the primary applications of the HMP series? A: It is widely used in schools, hospitals, and laboratories for the fast and gentle preparation of standard and highly sensitive biological culture media.

Q2: How does the system ensure safety during sterilization? A: The device is equipped with 4 independent temperature/pressure detectors and an automatic air-tightness check program to prevent leaks and ensure user safety.

Q3: Can I add nutrients like blood after the sterilization process? A: Yes, using the "Chocolate Agar Mode," you can add heat-sensitive additives through the large auxiliary material addition port after the initial sterilization.

Q4: Does the media boil during the cooling process? A: No, the built-in pressure maintenance system prevents the boiling of the medium due to pressure drops, ensuring a gentle cooling cycle.

Q5: Is the equipment difficult to clean? A: Not at all. It features a built-in cleaning program that automatically sterilizes chambers, pipes, and valves, and discharges high-temperature water to eliminate residual media.

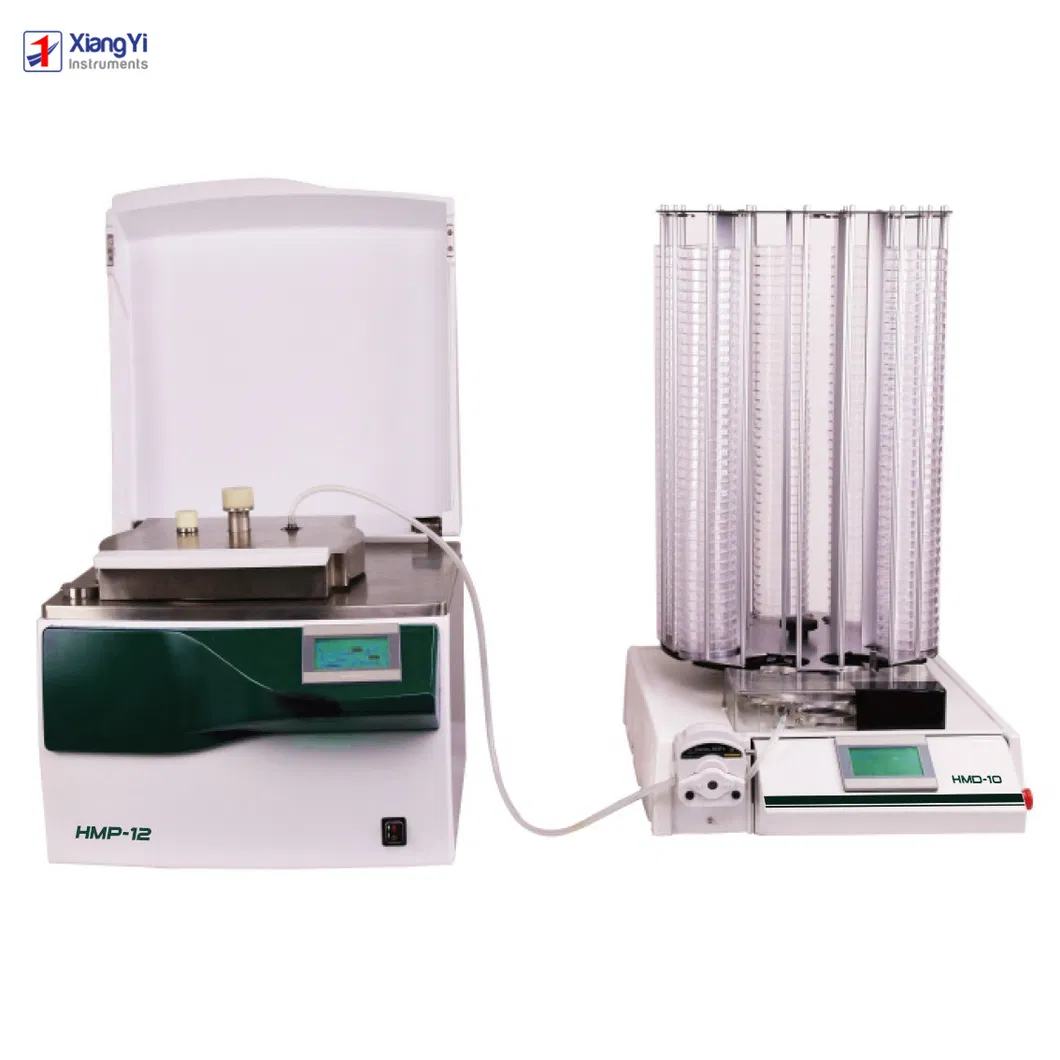

Q6: Can it connect to automated plate dispensers? A: Yes, the HMP preparator can be easily connected to fully automated media plate dispensers or manual dispensing peristaltic pumps.
