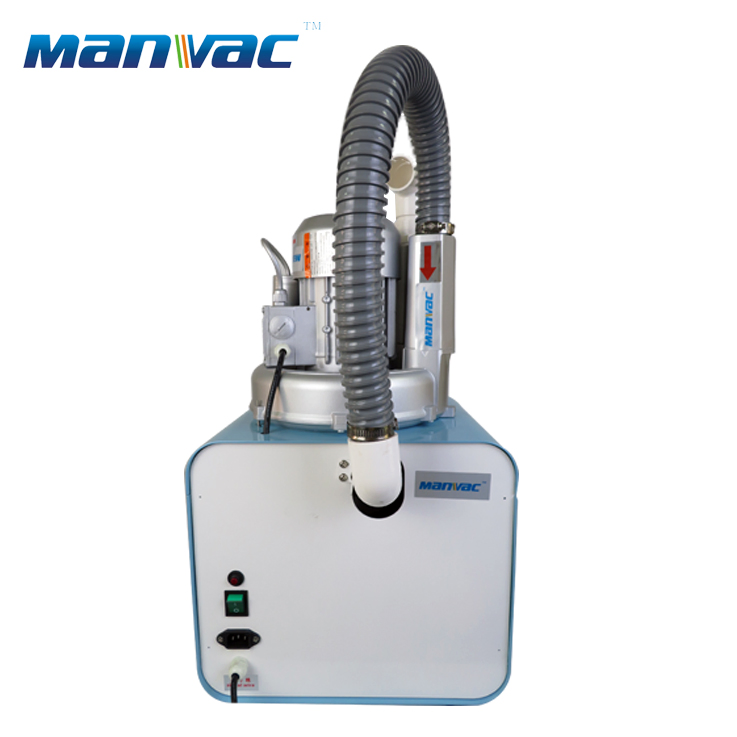

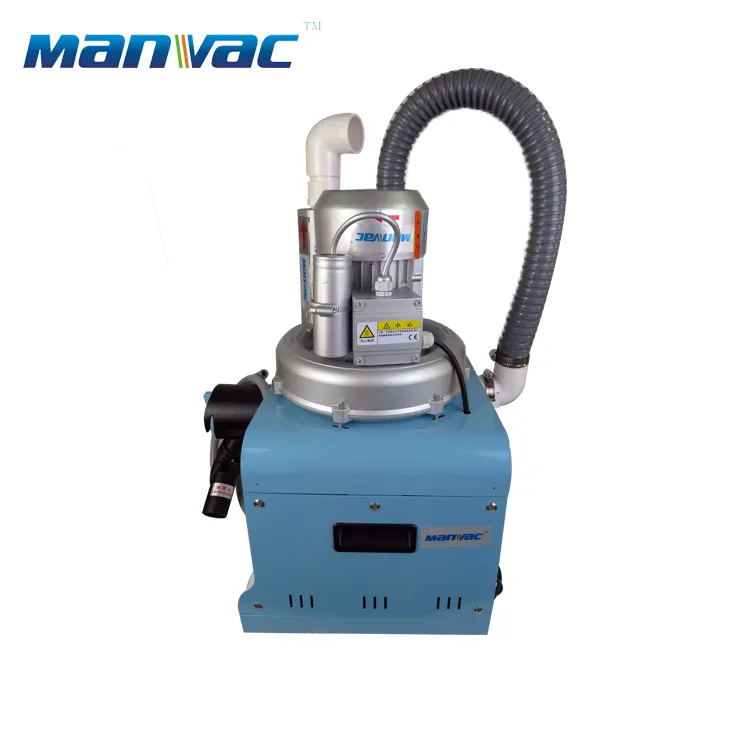

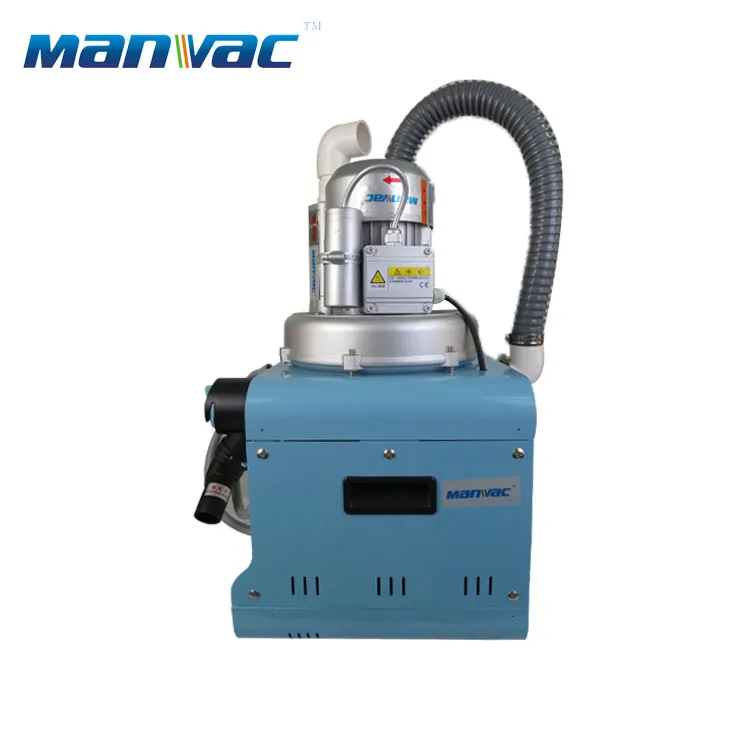

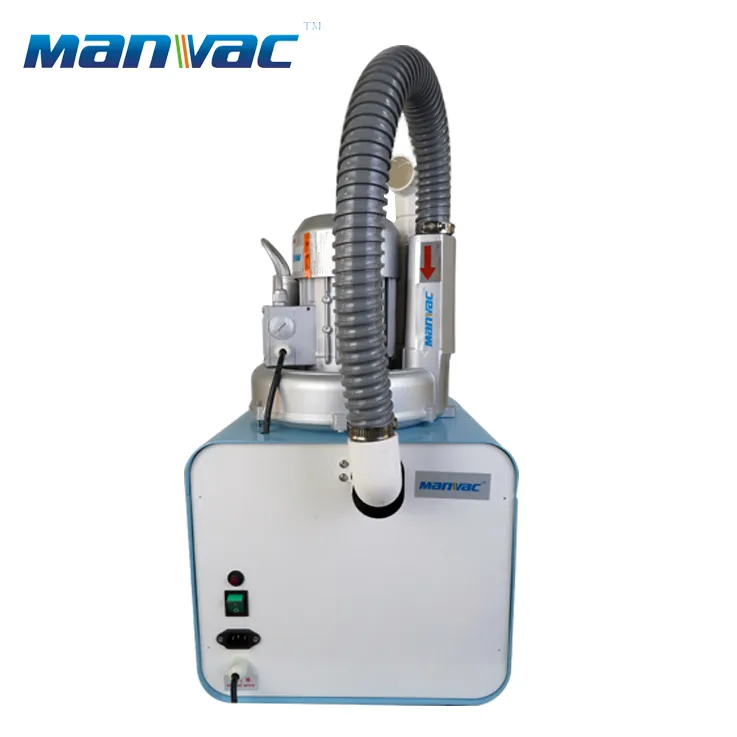

Long service life Dental Suction Unit Portable Hospital Suction System

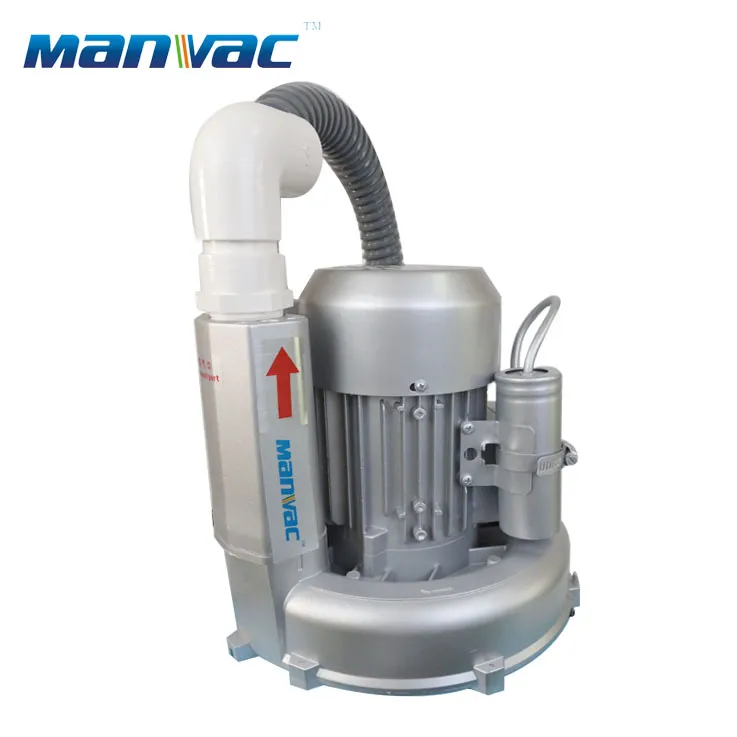

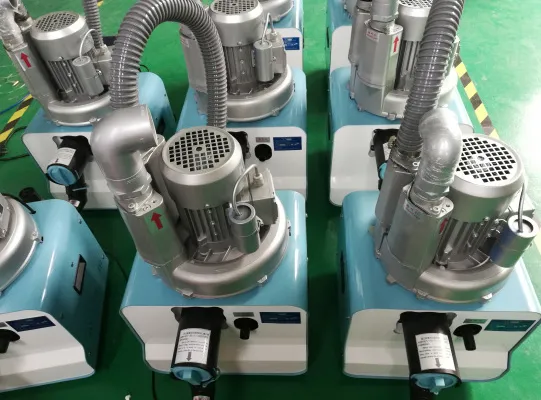

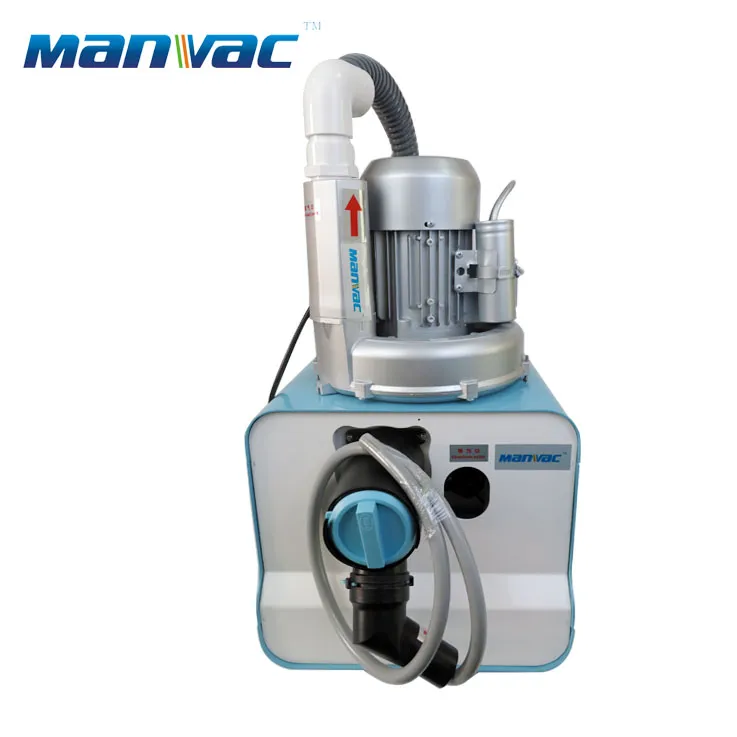

The dental suction machine is primarily composed of a high-pressure blower, power box, water-gas separator, fan connecting plate, column foot, riser, air filter, intake muffler, and more. Essential accessories include a throat clamp ring, intake pipe, and exhaust pipe.
The dental suction machine utilizes a motor vacuum pump to generate continuous negative pressure. Through the pipeline system, it aspirates and collects saliva and floating fine particles during oral treatment, separates the water and gas, and safely discharges them.
| MODEL | K 550 | K 750 | K 1300 (Inverter) |
|---|---|---|---|
| VOLTAGE (V) | 220V | 220V | 220V |
| FREQUENCY (HZ) | 50 | 50 | 50 |
| POWER (W) | 550 W | 750 W | 1300 W |
| DRAG CAPACITY | 1 drag 1 | 1 drag 2 | 1 drag 4 |
| SUCTION CAPACITY (L/MIN) | 550 | 750 | 1300 |
| VACUUM (KPA) | -15 | -17 | -22 |
| NOISE (DB) | 70 | 75 | 75 |
| NET WEIGHT (KG) | 32 | 35 | 40 |
| MACHINE SIZE (MM) | 355*535*710 | 375*535*780 | 375*535*780 |
| CARTON SIZE (MM) | 500*610*810 | 500*610*810 | 500*610*810 |
Our units offer reliable performance, low maintenance rates, minimal vibration, and low power consumption. The beautiful appearance and maintenance-free design make it a top choice for continuous operation.
Application Field: Widely used in oral medicine, health care units, individual dental clinics, and other supporting medical fields.
