Dental Manufacturer Dental Polishing Instruments Dental Diamond Burs

1 / 5

Dental Manufacturer Dental Polishing Instruments Dental Diamond Burs

Customization:	Available
Usage:	Polishing Material, Embedded Material, Orthodontic Material, Maxillofacial Prosthesis Materials, Lining Material, Dental Preventive Health Care Materials, Planting Material, Bonding Material, Filling Material, Model Making
Material:	Metal

Send Inquiry

Product Description

📋 Overview & Basic Info

Model NO.

diamond dental bur

Applicable Dept.

Oral Health Department

Nature

Specialized Instrument Equipment

Certification

CE, FDA

MOQ

1 set

Features

Diamond, Durable

Package

10PCS/Pk

HS Code

9018

Capacity

10000box/Month

📍 Product Introduction

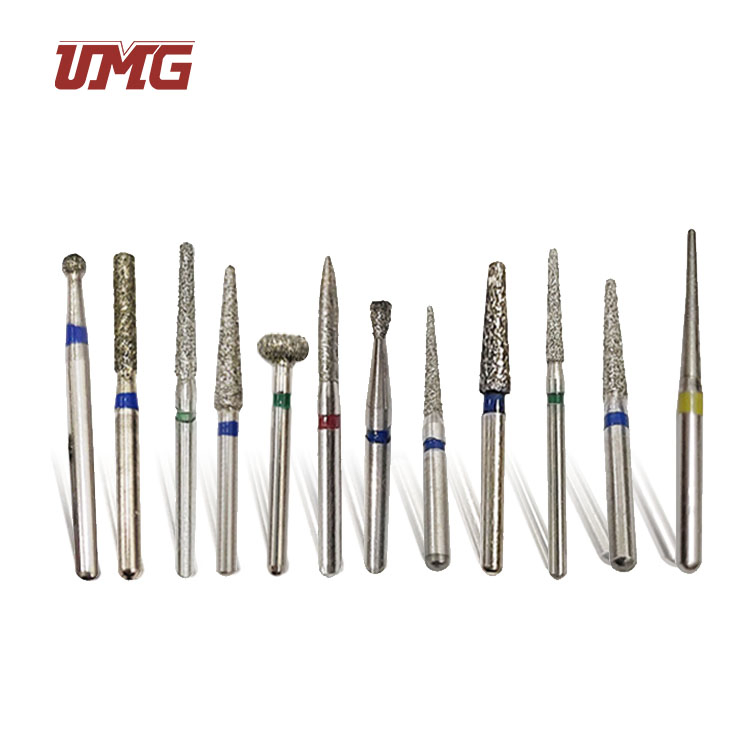

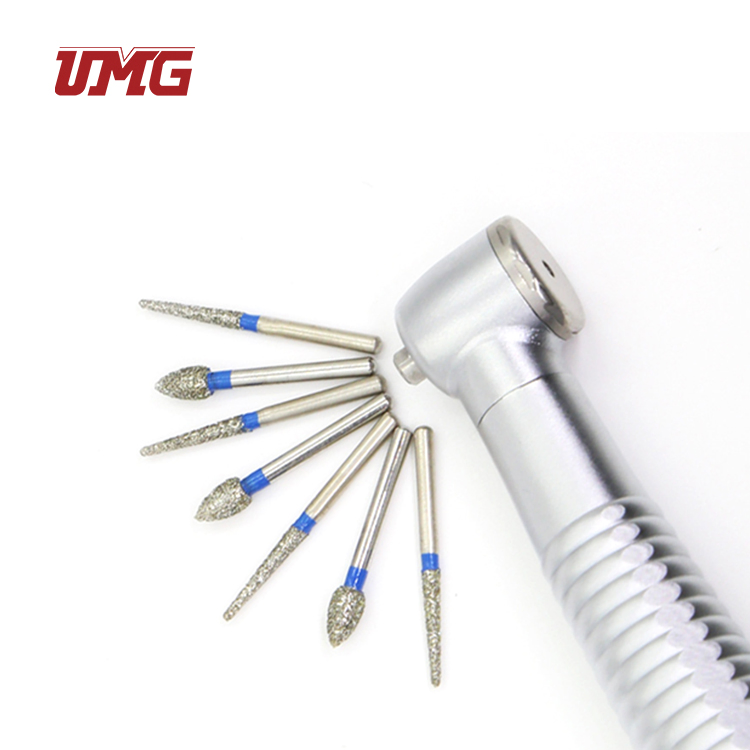

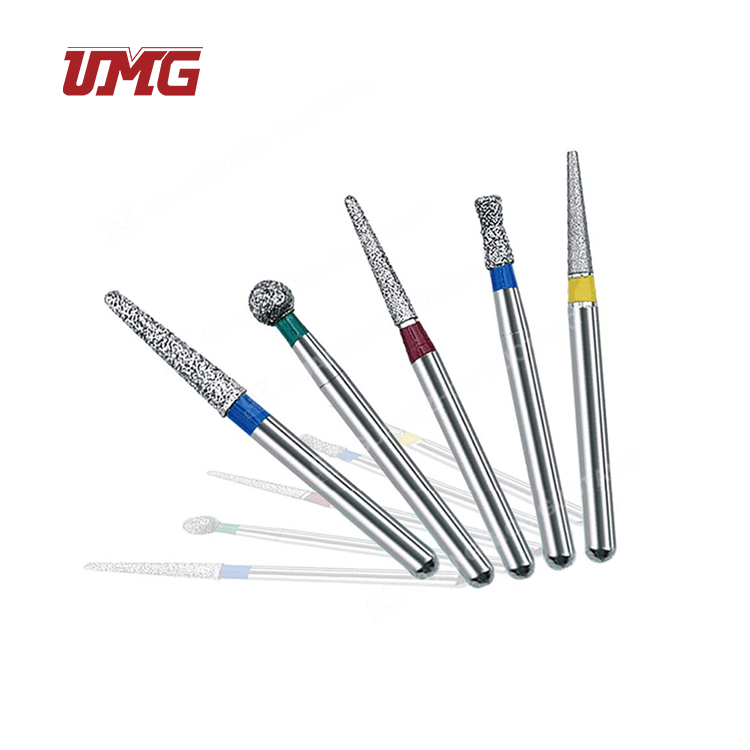

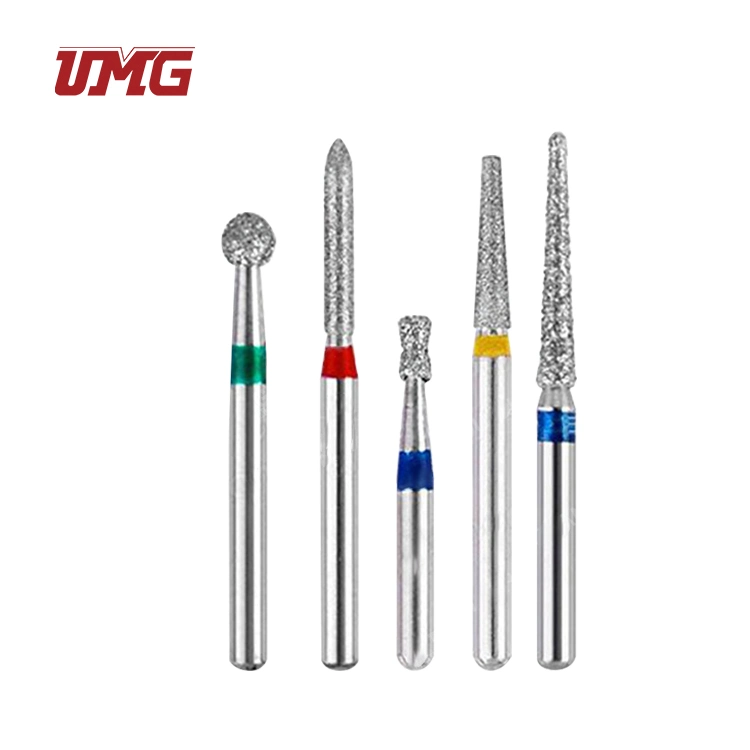

High Performance Dental Burs

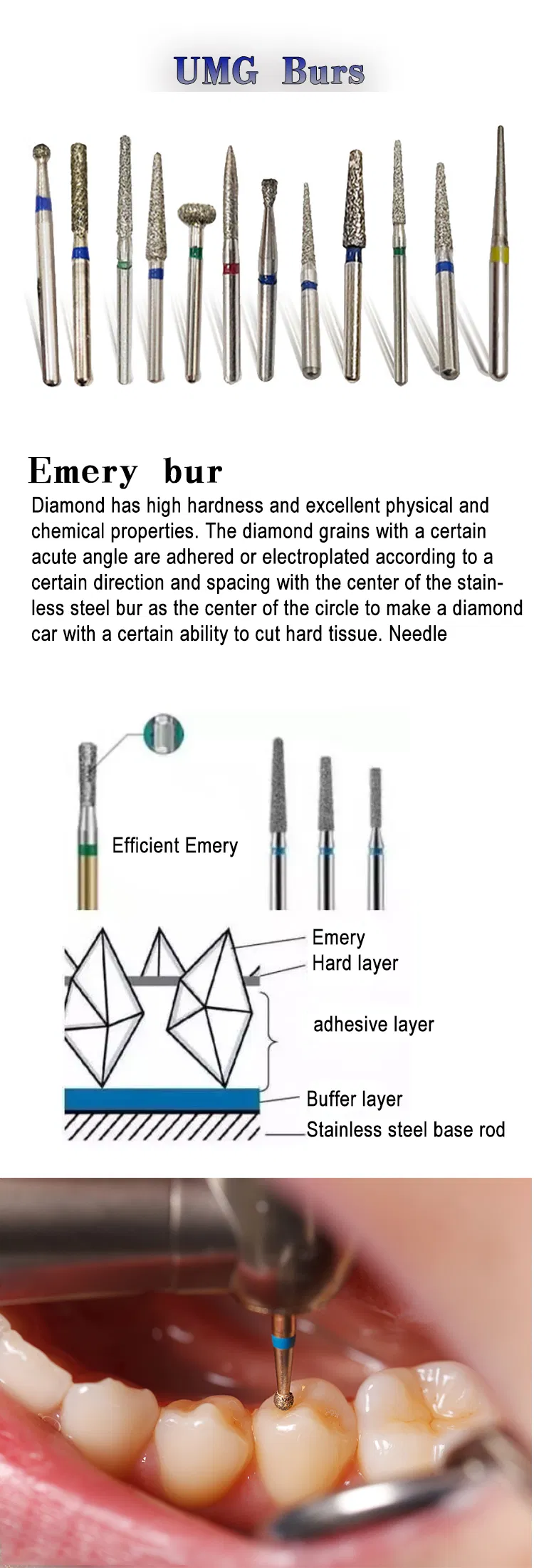

Made of multi-plating diamond particles using advanced production technology. High-quality shanks are crafted from top-grade stainless steel, ensuring high tensile strength without bending or rusting.

Usage & Application: For finishing, carving, and smoothing various dental workpieces including steel teeth, inner steel crowns, porcelain teeth, resin teeth, and resin bases.

Quality Control: 100% inspection using laser measurement machines. Cutting and strength tests are performed for each lot to ensure standards stricter than ISO.

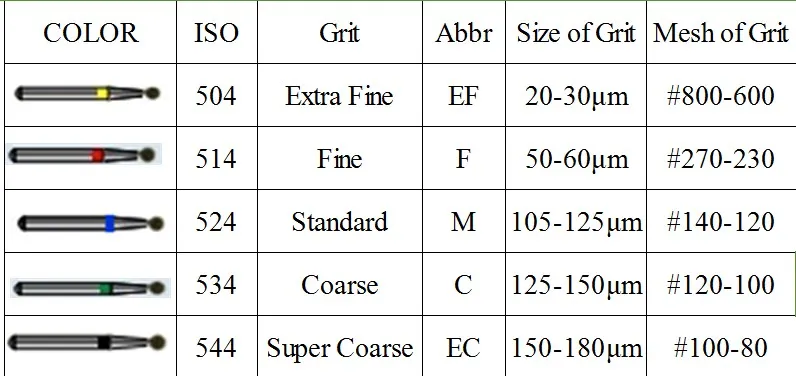

ISO Standards: 806 (Diamond), 807 (Sintered Diamond), 500 (Carbide).

🖇 Technical Specifications

ISO No.	Type	Diameter (mm)	Length (mm)
314	FG	1.6	19
104	W(RA)	2.35	22.5
204	H (HP)	2.35	44.5

⚠ Usage Instructions

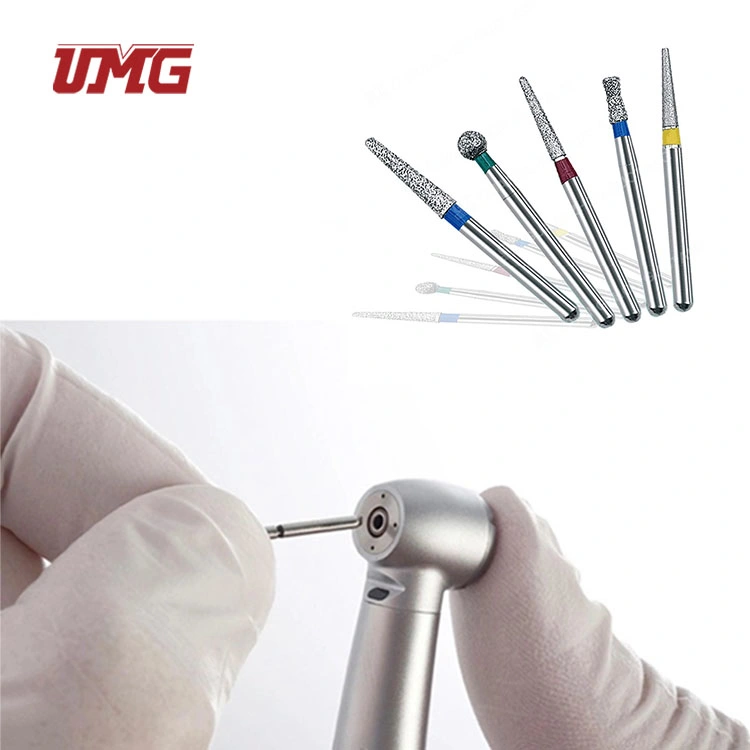

1.Insert the shank into the handpiece to the full length according to manufacturer instructions.

2.Run instruments before use to ensure no decentering; discard any bent instruments.

3.Always use spray and maintain a plentiful water supply to prevent loading and pulpitis.

4.Apply care; pressure should be 20 to 50p for instruments with diameters up to 023.

5.Use maximum allowable RPM for each instrument. Avoid levering, tilting, or twisting motions.

6.Wear safety glasses or face masks for protection.

7.Do not use high-pressure steam sterilizers exceeding 200°C.

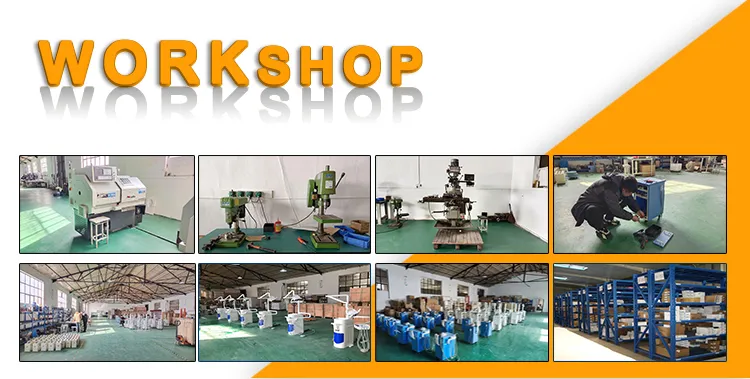

🏭 Production Facilities

❓ Frequently Asked Questions

Q1: What materials are used in these dental burs?

The burs are made with high-quality, multi-plating diamond particles and shanks made of top-grade stainless steel for durability and tensile strength.

Q2: Which dental materials can these burs be used on?

They are suitable for finishing and carving steel teeth, inner steel crowns, porcelain teeth, resin teeth, and resin bases.

Q3: What certifications do these dental burs hold?

These dental diamond burs are CE and FDA certified, ensuring compliance with international medical standards.

Q4: What is the recommended pressure during operation?

For instruments with a diameter up to 023, the recommended pressure is between 20 to 50p to maintain efficiency and safety.

Q5: How should the burs be maintained to ensure a long life?

Always use a plentiful water spray during operation to prevent loading and pulpitis, and avoid excessive load or twisting motions.

Q6: Are there specific sterilization limits for these burs?

Yes, you should not use high-pressure steam sterilizers that heat above 200°C, including during the drying process.
