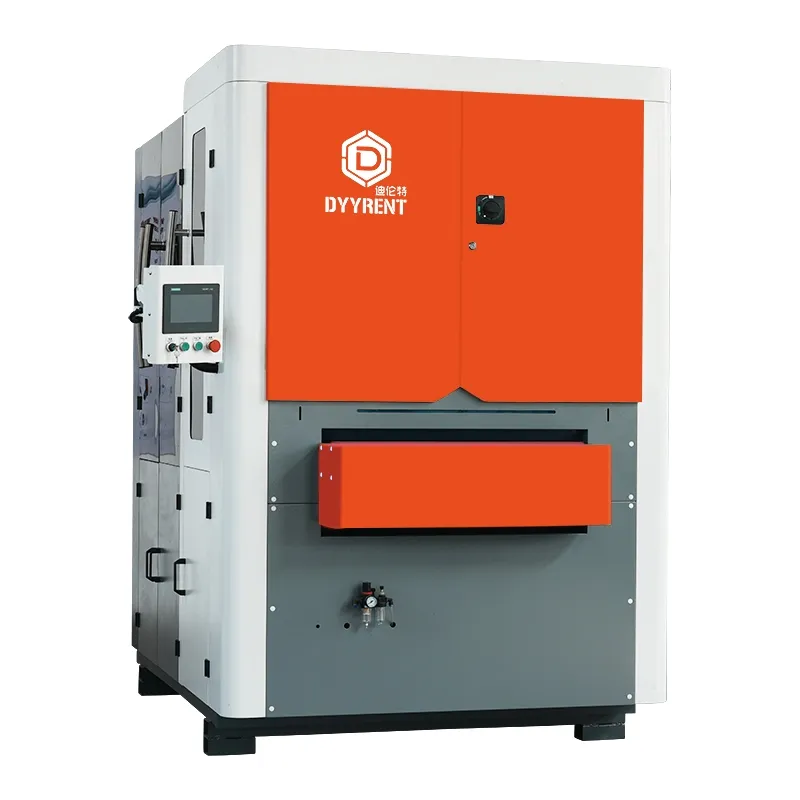

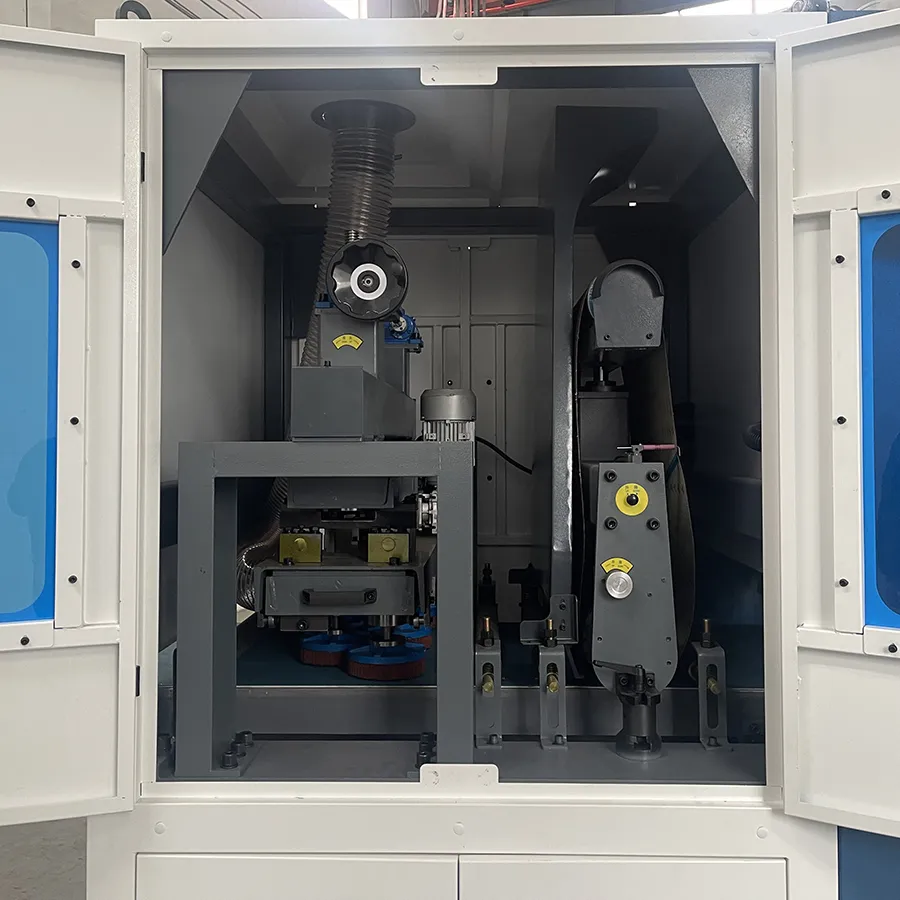

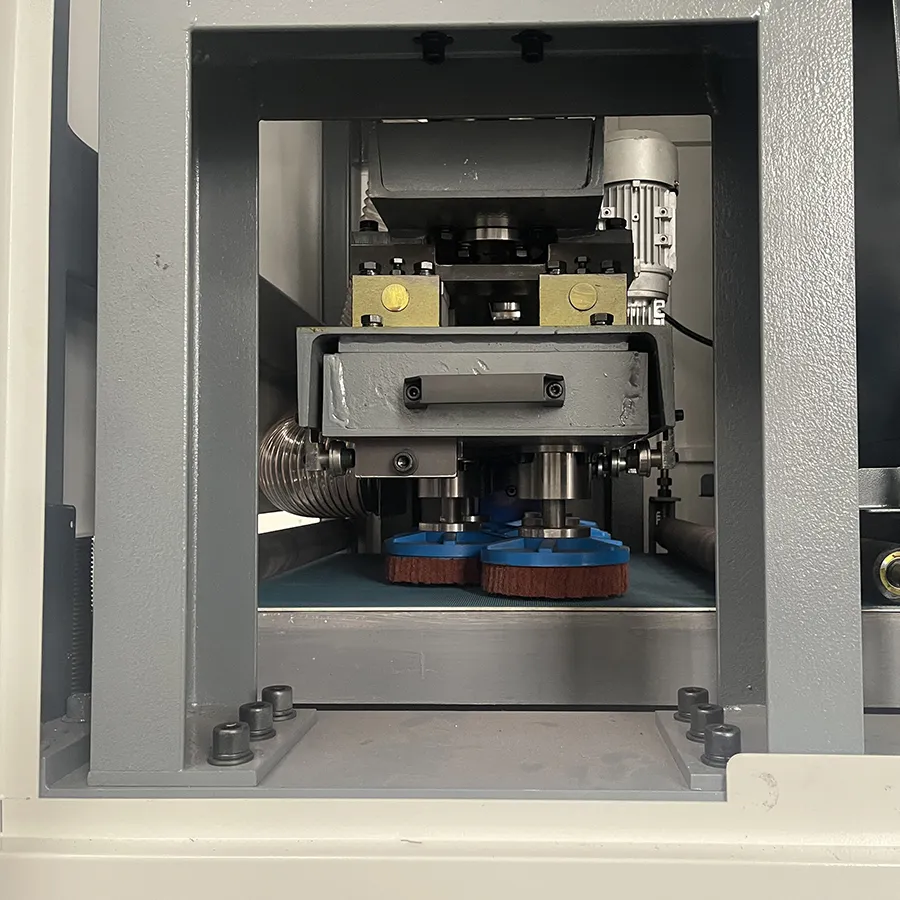

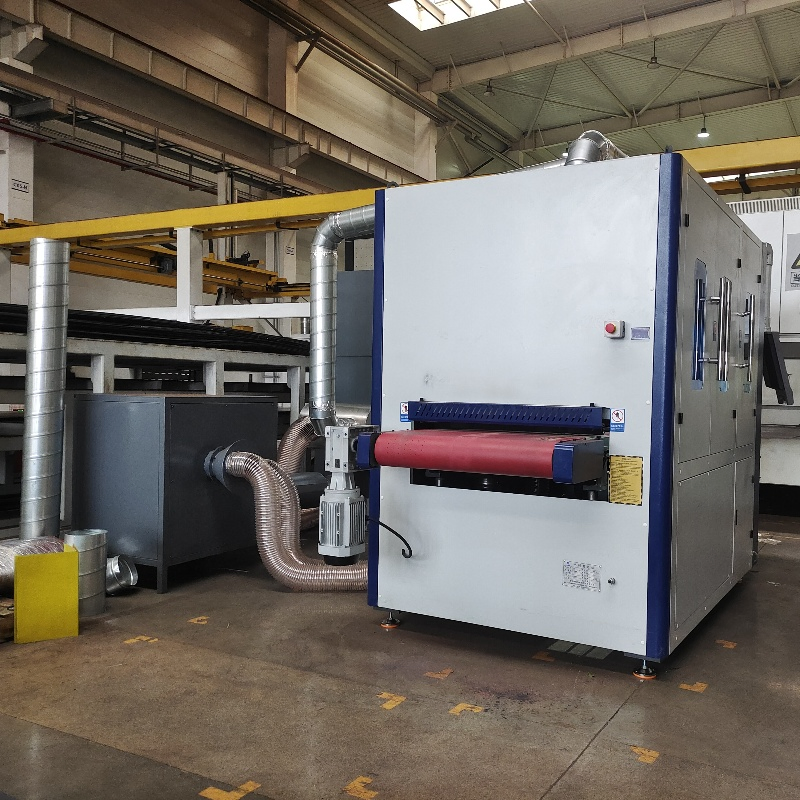

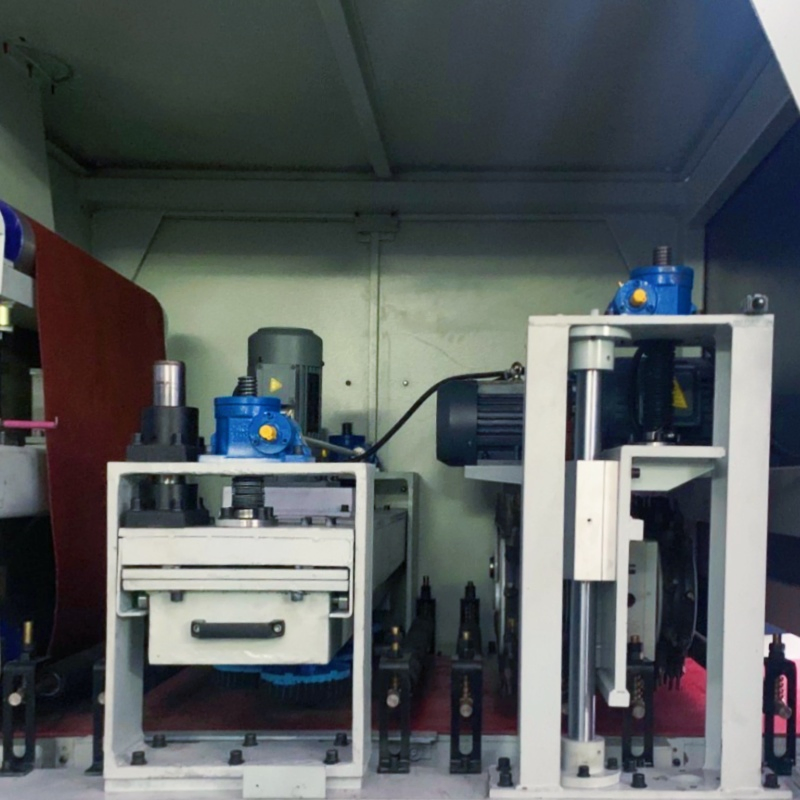

The heart of this exceptional equipment is the disk brush mechanism. These disk brushes are meticulously aligned in parallel and driven by a central revolution axis. Each brush rotates rapidly left and right with precision, striking the workpiece to meticulously eliminate sharp edges from the surface contours. This process achieves a smooth chamfering effect and enhances aesthetic appeal.
| MODEL | DRP-600SP | DRP-800SP | DRP-1000SP |
|---|---|---|---|
| Effective working width | 650mm | 850mm | 1050mm |
| Deburring thickness | 0.5-80mm | ||
| Min machining (Vacuum) | ≥50*50*1 mm | ||
| Min machining (Magnetic) | ≥30*30*1 mm | ||
| Feed rate | 0.5-9m/min | ||
| Disk brush swing speed | 8-20r/s | ||
| Disk brush rotation speed | 8-12r/s | ||
| Abrasive belt speed | 2.2-11m/sec | ||
| Belt motor power | 7.5kw | 11kw | 11kw |
| Equipment noise | ≤80dB | ||

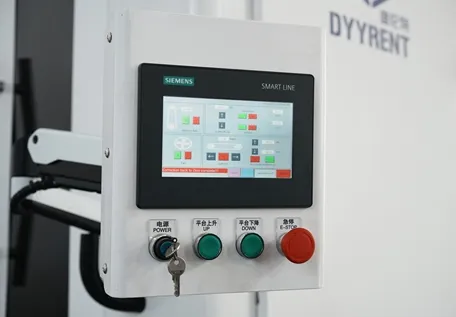

Equipped with an intuitive system for effortless plate processing. The thickness of the plate is automatically detected and executed via a simple positioning button, ensuring seamless transitions and optimal performance.

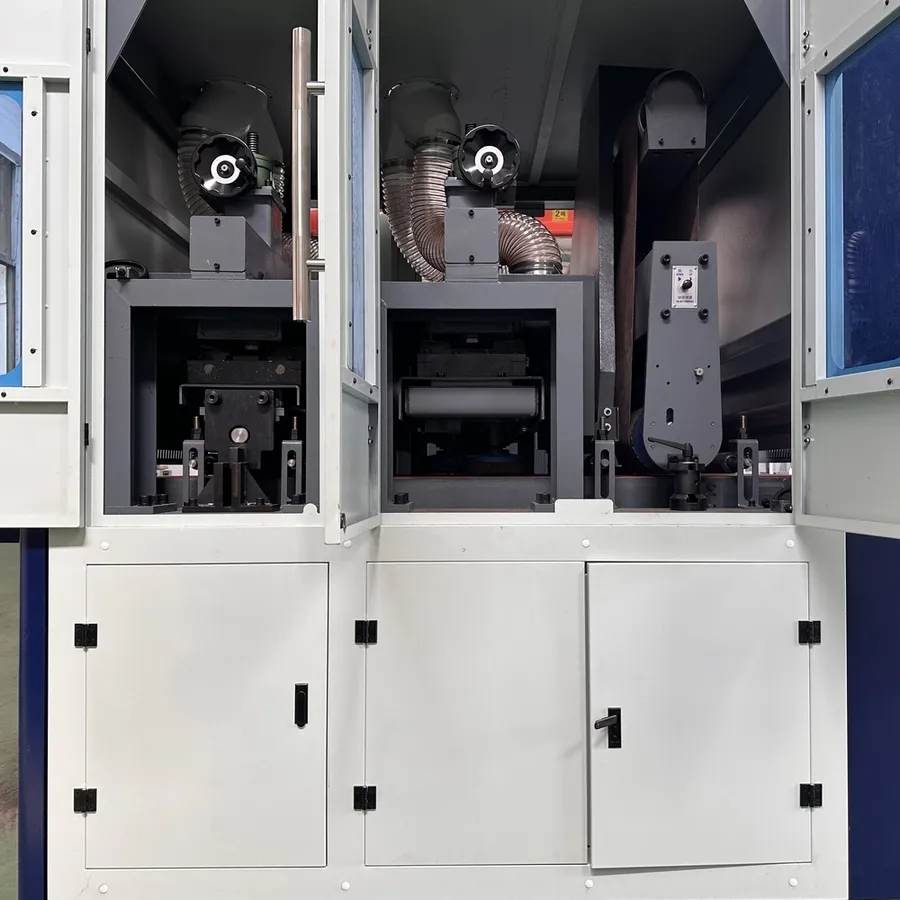

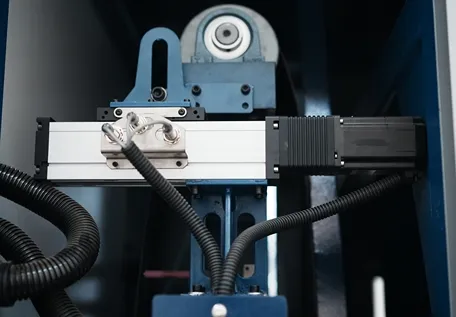

Engineered to pinpoint the precise position of the abrasive belt. This servo-driven technology replaces outdated pneumatic systems, ensuring consistent results unaffected by air pressure fluctuations.

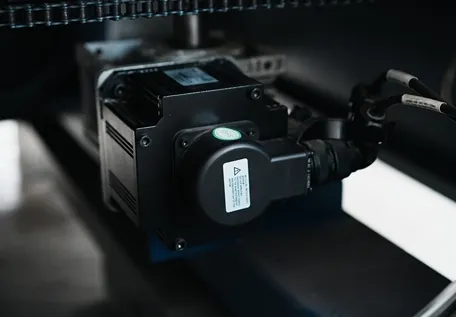

Achieve outstanding precision with a remarkable accuracy error margin of just ±0.05mm. Supports both manual and automatic height adjustments with real-time display.

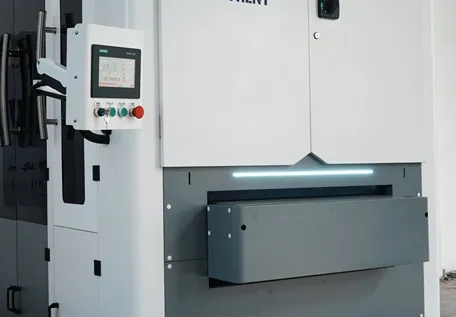

Enhanced safety features ensure operator awareness. The reliable safety light signals regular operation and promptly extinguishes if issues arise, maintaining a secure working environment.
