Basic Information
| Model NO. | YJ-DL2 |
| Power Source | Electric |
| Shelf Life | 1 Year |
| Quality Certification | CE |
| Instrument Classification | Class II |
| Safety Standard | En 149 -2001+A1-2009 |
| Product Name | Dental Diode Laser |
| Function | Dentistry Soft Tissue Surgery |
| Wavelength | 450nm + 650nm + 980nm |
| Cooling System | Air Cooling |
Product Description

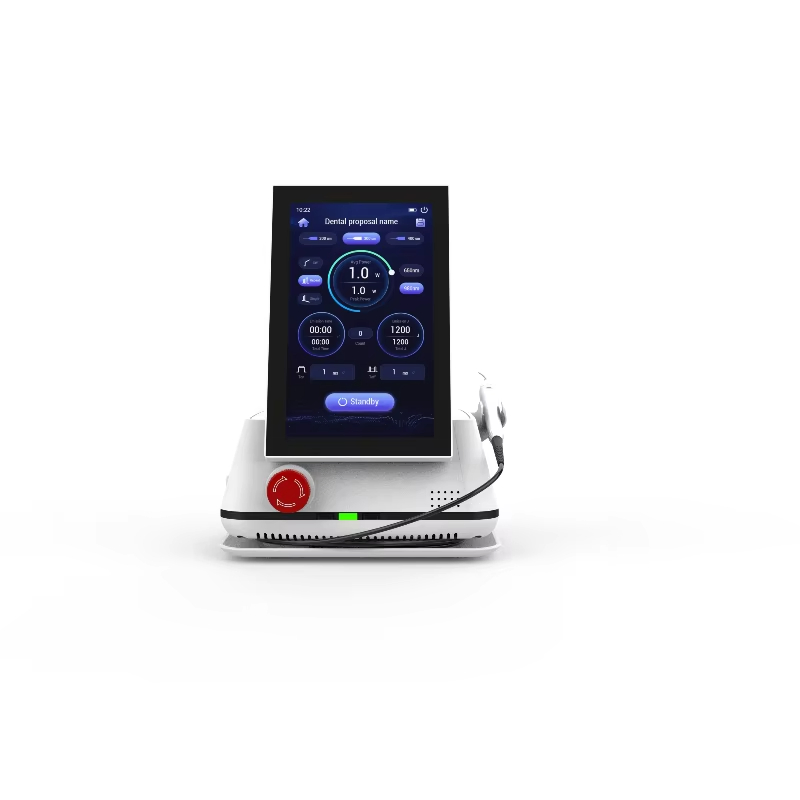

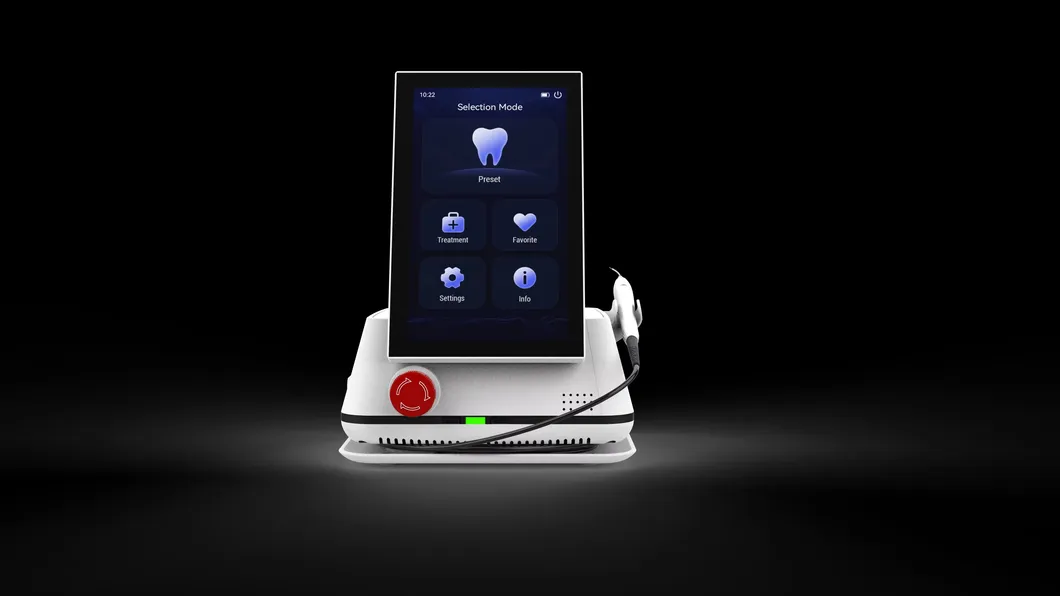

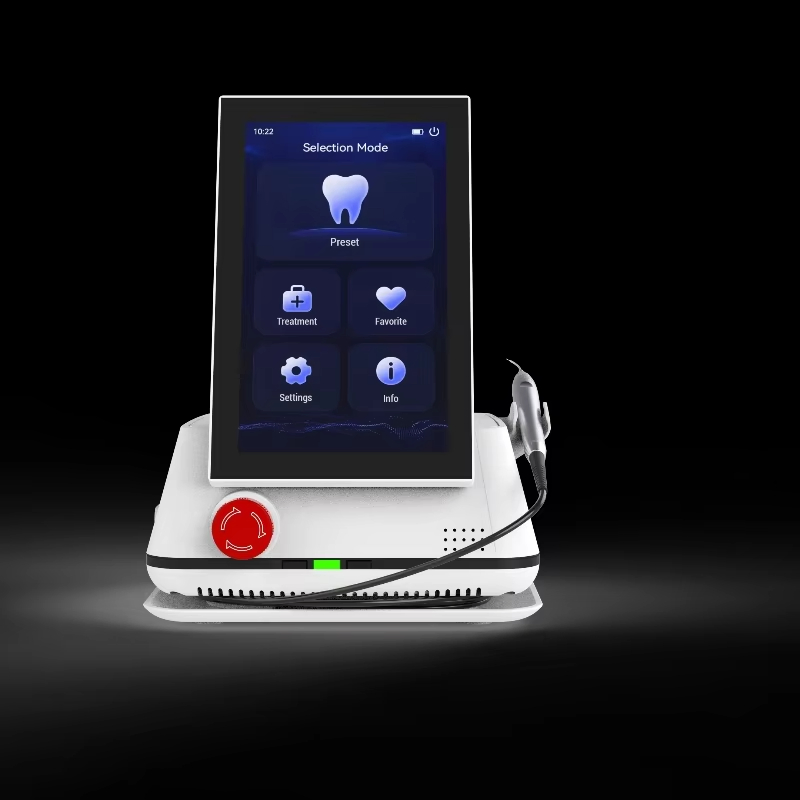

450nm 650nm 980nm Dental Diode Laser System
Blue Dental diode lasers, often referred to as soft-tissue lasers, are precision instruments ideal for cutting or contouring oral soft tissues. They offer a wide range of clinical treatment possibilities, creating precision cuts in gingiva while eliminating bleeding and significantly reducing patient healing time. Class IV blue dental lasers are versatile tools for troughing, sterilizing endodontic canals, treating periodontal disease, and tooth whitening.

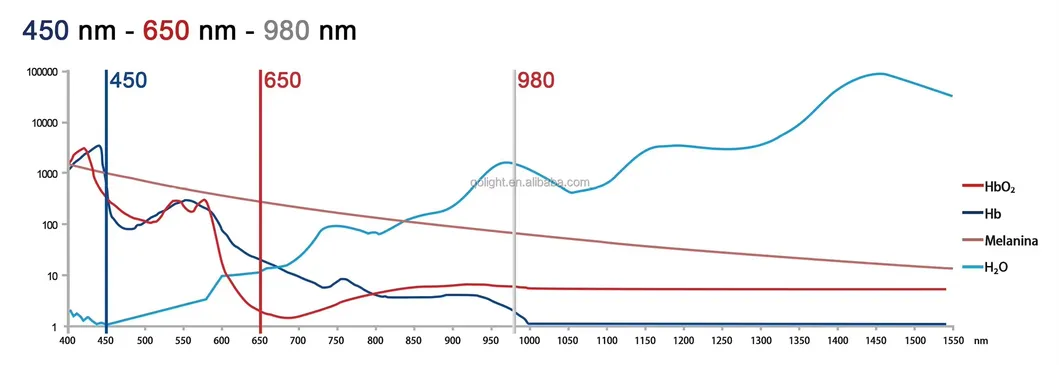

● 450nm Blue Laser: The perfect wavelength for soft-tissue surgical procedures (cutting, ablation, coagulation). High hemoglobin absorption and zero water absorption ensure precise cutting with minimal thermal damage.
● 650nm Laser: Optimized for Low Level Laser Therapy (LLLT). It promotes tissue regeneration, anti-inflammation, and fast wound healing.
● 980nm Laser: Traditional dental wavelength with high water absorption and thermal effects. Excellent for vaporization, hemostasis, periodontal disease treatment, and teeth whitening.
Clinical Images
Technical Specifications
| Laser Type | GaAIAs Diode |
| Laser Class | Class IV |
| Wavelength Options | 980nm / 650nm+980nm / 450nm+650nm+980nm |
| Max Power | Up to 10W (Wavelength dependent) |
| Operation Mode | CW / Single Or Repeat Pulses |
| Pulse Duration | 10us - 3s |
| Repetition Rate | 1Hz - 20KHz |
| Aiming Beam | 650nm, Power < 5mW |

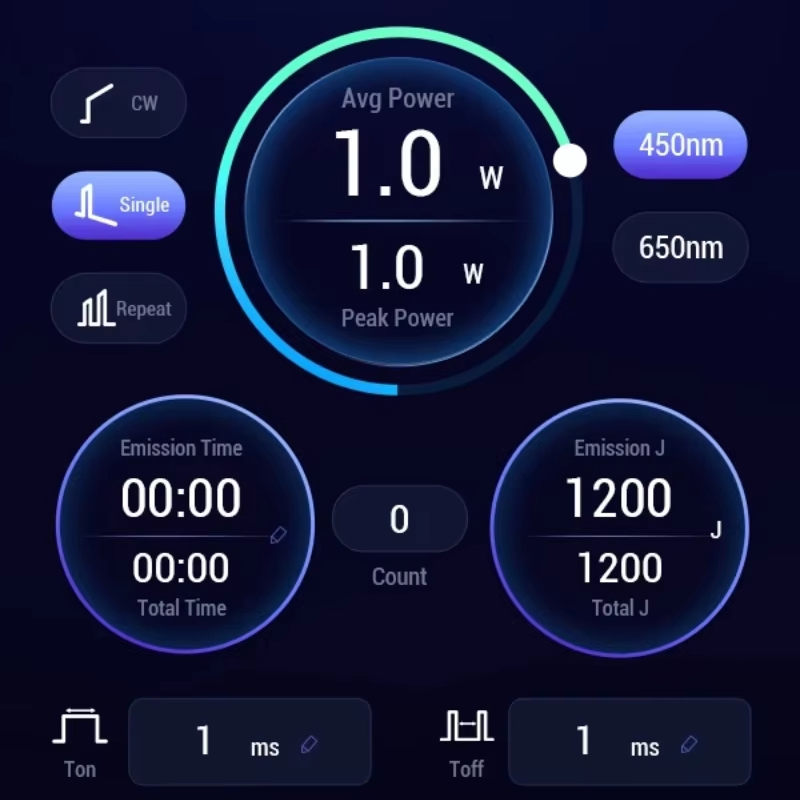

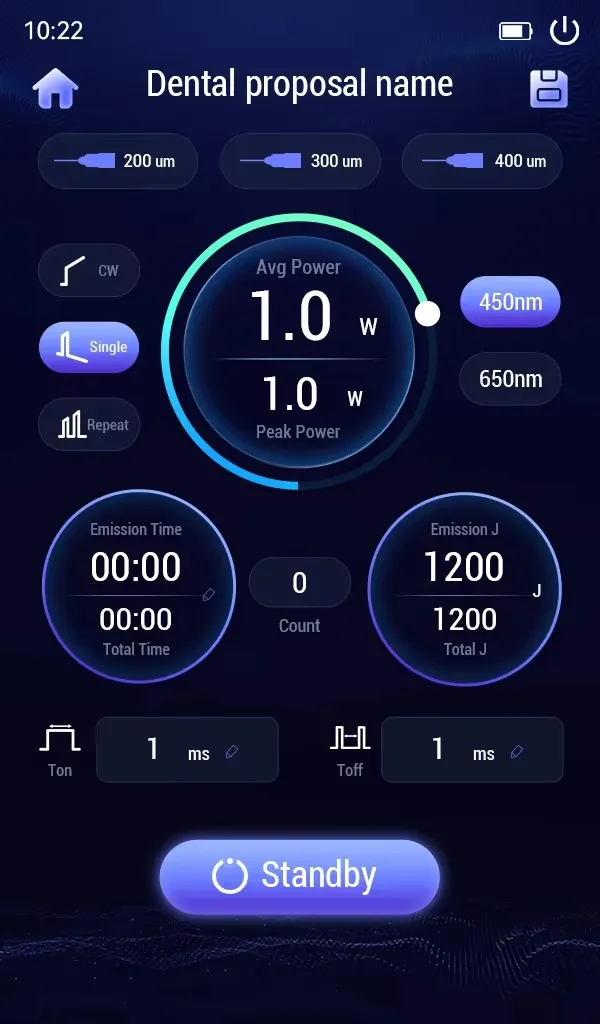

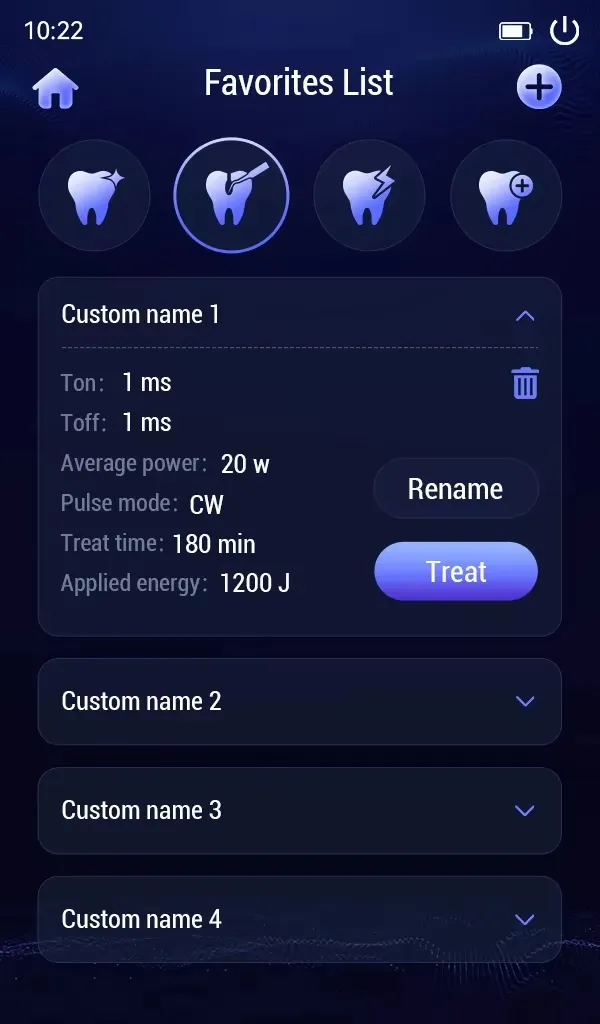

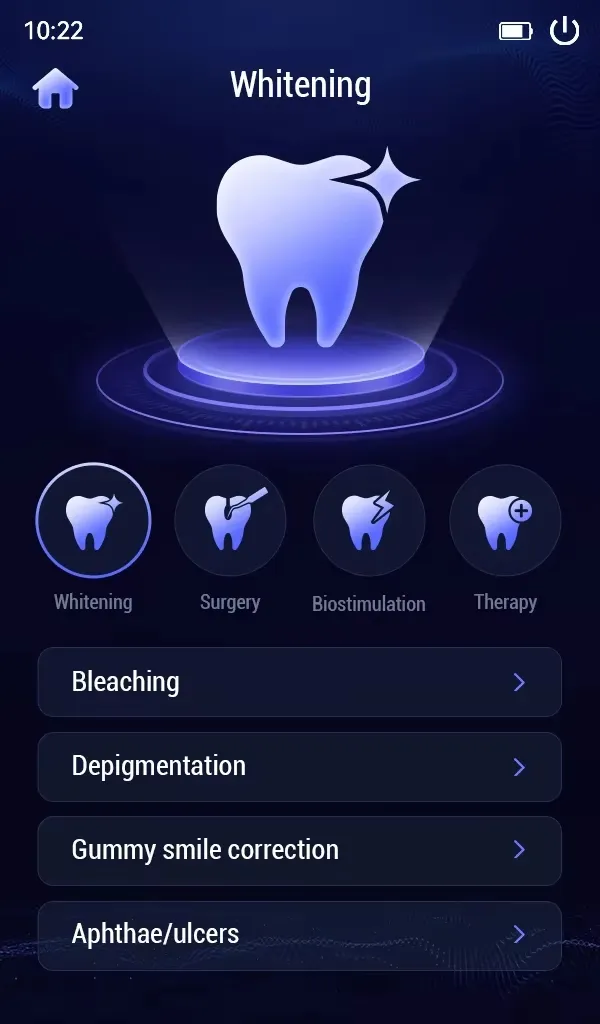

| Control Mode | 7-inch True Color Touch Screen (600*1024) |
| Dimensions / Weight | 170*180*250mm / 2.0KG |

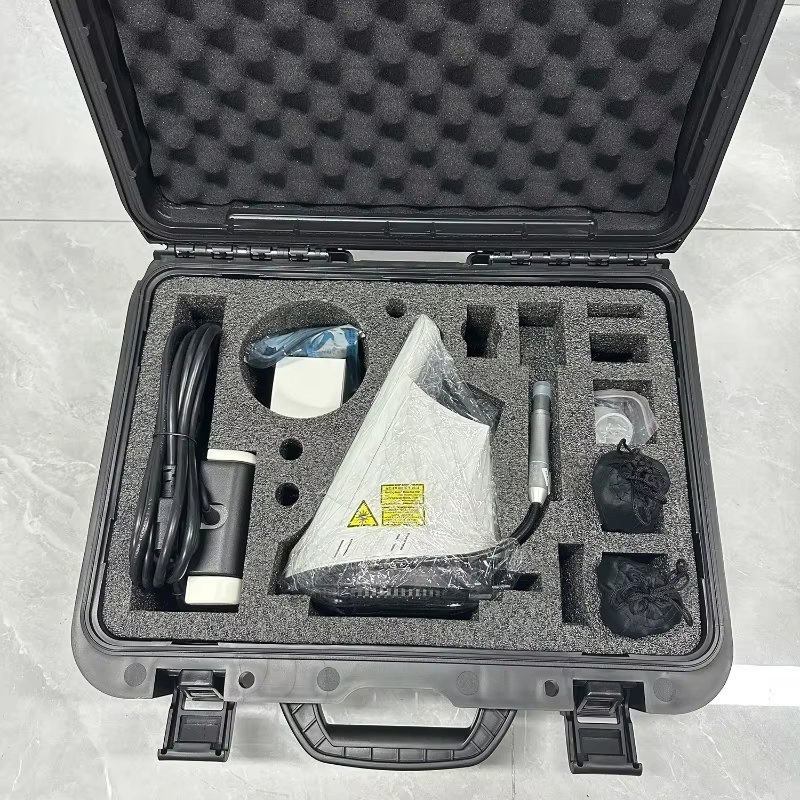

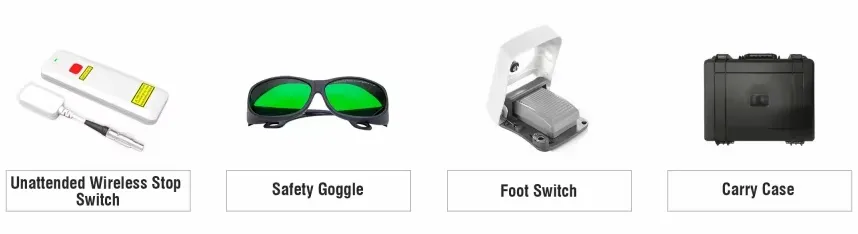

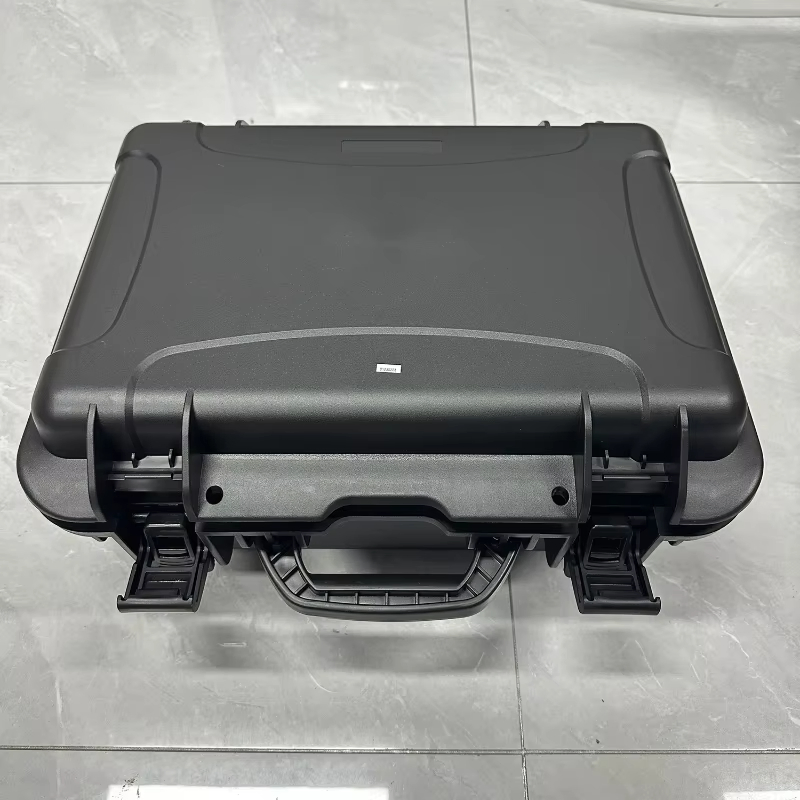

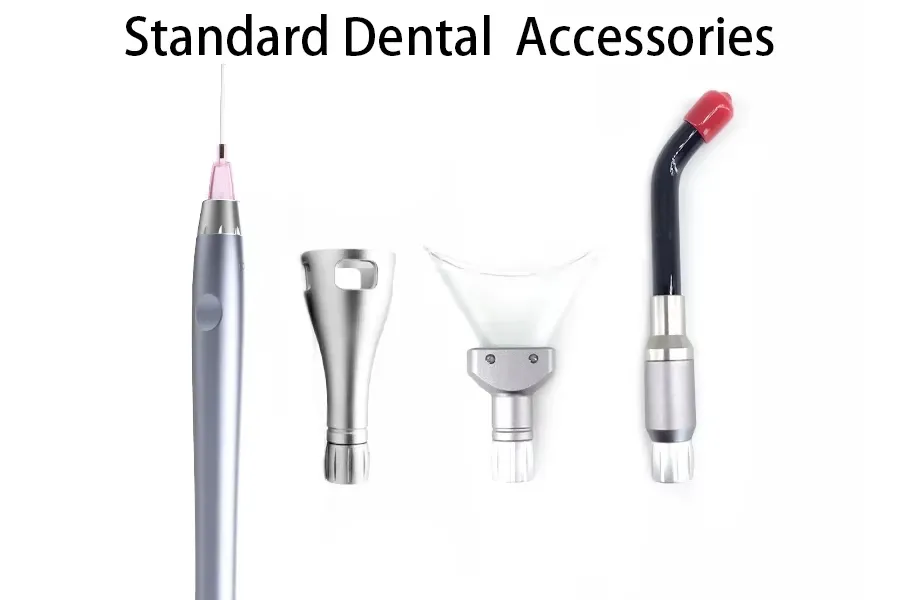

Packing List & Accessories

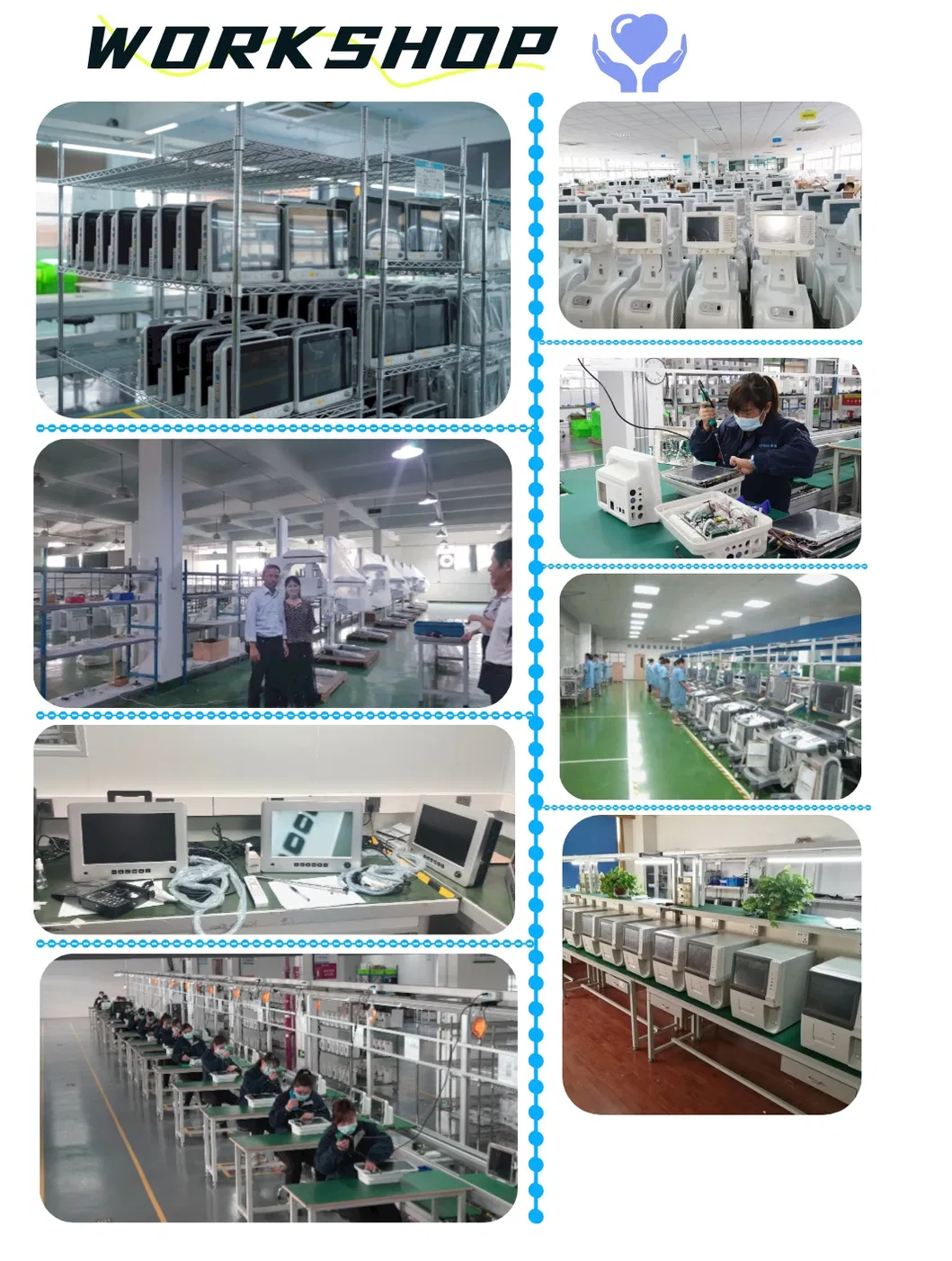

Manufacturing & Quality
